Individual hose record

DS2121113 Hose Repair Specifications

Excavator · Doosan · DX140LCR-5 · Control Lever

Finished length600 mm

Locate this hose

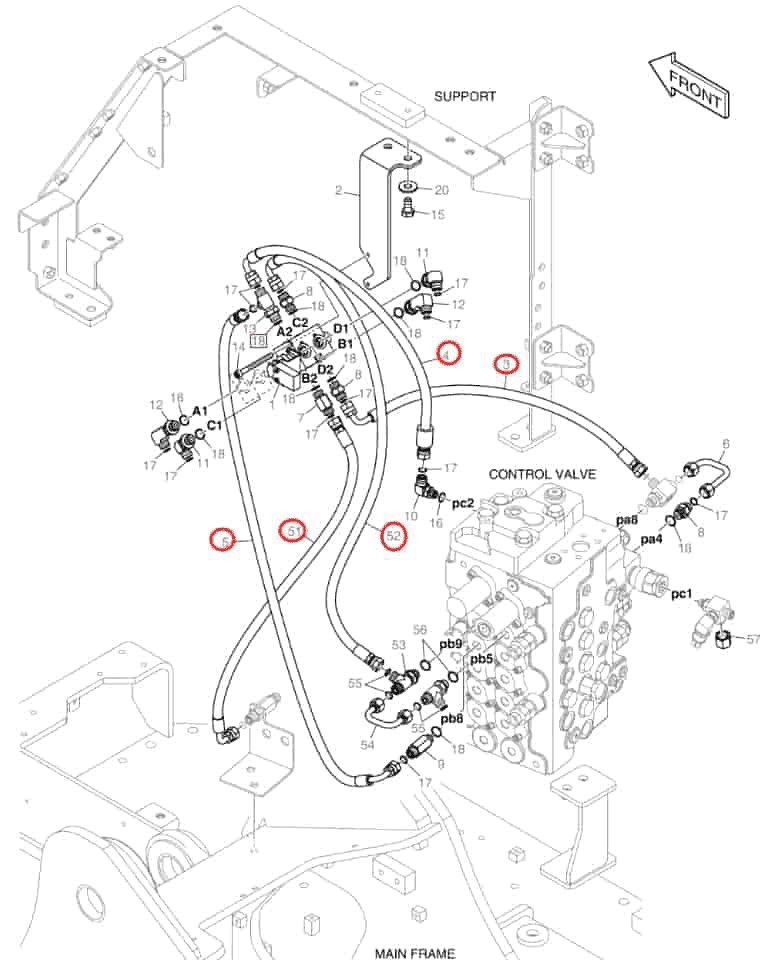

Installation diagram — Pipe No. 52

Locate Pipe No. 52 in the diagram, then confirm part number DS2121113 before removing the hose.

Part number: DS2121113
Diagram pipe number: 52
Installation route: 模式转换阀C2口~分配阀PB9口
Hose specification: DN10;1SN-06;18MPa
Finished length: 600 mm
Working pressure: 18 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 10

Installation route: 左手柄P口~进回油阀P口

Length: 1,870 mm
Specification: DN10;1SN-06;18MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 70°美制内螺纹平面密封

Diagram Pipe No. 4

Installation route: 模式转换阀A2口~分配阀PC2口

Length: 480 mm
Specification: DN10;1SN-06;18MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 5

Installation route: 模式转换阀A2口~分配阀PB8口

Length: 820 mm
Specification: DN10;1SN-06;18MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 77

Installation route: 中转接头~分配阀PA5口

Length: 960 mm
Specification: DN10;1SN-06;18MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 9

Installation route: 右手柄T口~进回油阀T口

Length: 1,610 mm
Specification: DN10;1SN-06;18MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 70°美制内螺纹平面密封

Diagram Pipe No. 6

Installation route: 中转接头~分配阀PB3口

Length: 1,310 mm
Specification: DN10;1SN-06;18MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 5

Installation route: 模式转换阀A2口~分配阀PB8口

Length: 850 mm
Specification: DN10;1SN-06;18MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
