- Length
- 550 mm
- Specification
- DN12;2SN-8;27.5MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
Individual hose record
4426436 Hose Repair Specifications
Excavator · Hitachi · EX50UNA · Hydraulic Pump
Finished length350 mm
Locate this hose

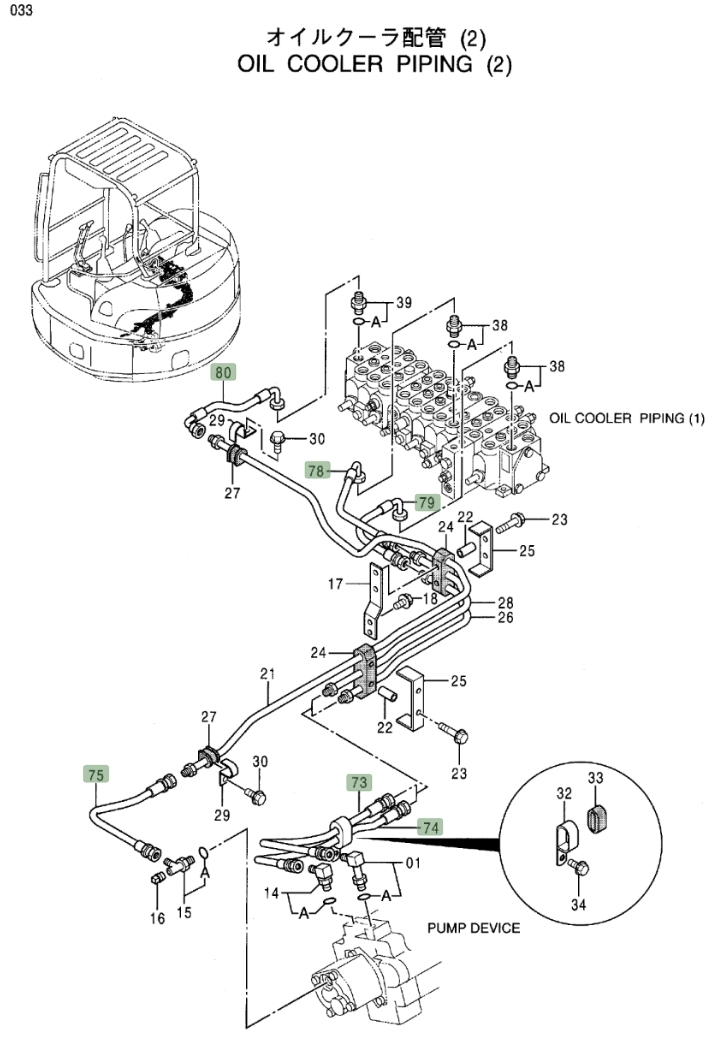

Installation diagram — Pipe No. 75
Locate Pipe No. 75 in the diagram, then confirm part number 4426436 before removing the hose.
Repair specifications
- Part number
- 4426436
- Diagram pipe number
- 75
- Installation route
- 液压泵~铁管(分配阀)
- Hose specification
- DN10;2SN-6;27.5MPa
- Finished length
- 350 mm
- Working pressure
- 27.5 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Quantity
- 1
