Individual hose record

4607990 Hose Repair Specifications

Excavator · Hitachi · ZX240F-3 · Pedal

Finished length3,150 mm

Locate this hose

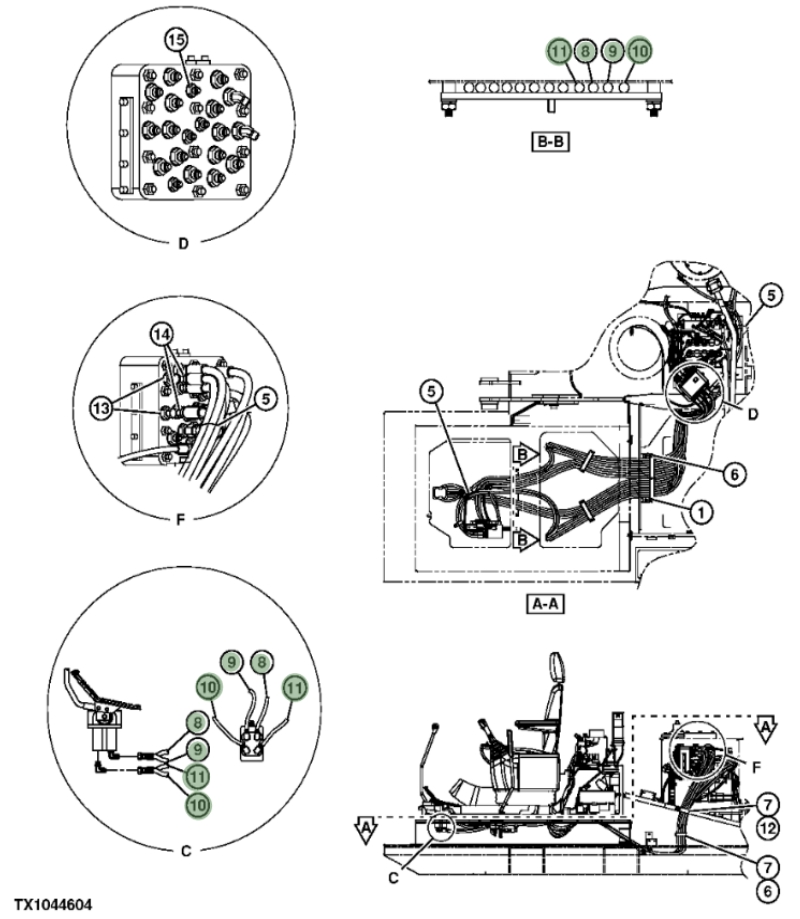

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 4607990 before removing the hose.

Hitachi ZX240F-3 installation diagram showing hydraulic hose 4607990 at Pipe No. 10 — Hitachi ZX240F-3Part 4607990 · Pipe No. 10Open full-size diagram

Repair specifications

Part number: 4607990
Diagram pipe number: 10
Installation route: 行走踏板~接线板(驾驶室)
Hose specification: DN10;1SN-06;18.0MPa
Finished length: 3,150 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1
