Individual hose record

4447441 Hose Repair Specifications

Excavator · Hitachi · ZX370F-FE-6N · Solenoid Valve

Finished length2,500 mm

Locate this hose

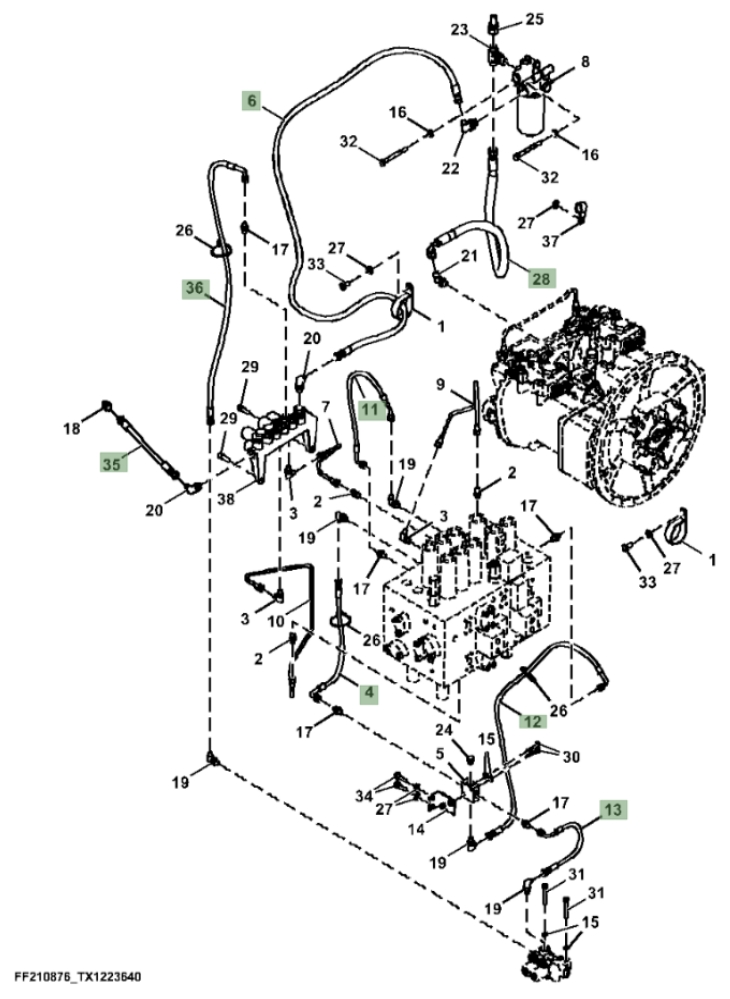

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 4447441 before removing the hose.

Hitachi ZX370F-FE-6N installation diagram showing hydraulic hose 4447441 at Pipe No. 6 — Hitachi ZX370F-FE-6NPart 4447441 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 4447441
Diagram pipe number: 6
Installation route: 电磁阀~先导滤芯
Hose specification: DN10;1SN-6;7Mpa
Finished length: 2,500 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 18

DH401093

Installation route: 电磁阀(液压泵)~

Length: 680 mm
Specification: DN6;1SN-04;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 24

FF528673

Installation route: 电磁阀~电磁阀(液压泵)

Length: 2,050 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 7

4630949

Installation route: 电磁阀~中转接头

Length: 560 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 14

4715421

Installation route: 电磁阀~

Length: 1,050 mm
Specification: DN6;1SN-04;7Mpa
Left fitting: 90°美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 25

FF532544

Installation route: 电磁阀(液压泵)~电磁阀(液压泵)

Length: 2,170 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 90°美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 36

4468180

Installation route: 电磁阀~电磁阀(液压泵)

Length: 1,130 mm
Specification: DN6;1SN-04;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
