4316272 Hose Repair Specifications

Excavator · Hitachi · EX400LC-3 · Boom Assembly

Finished length1,720 mm

Locate this hose

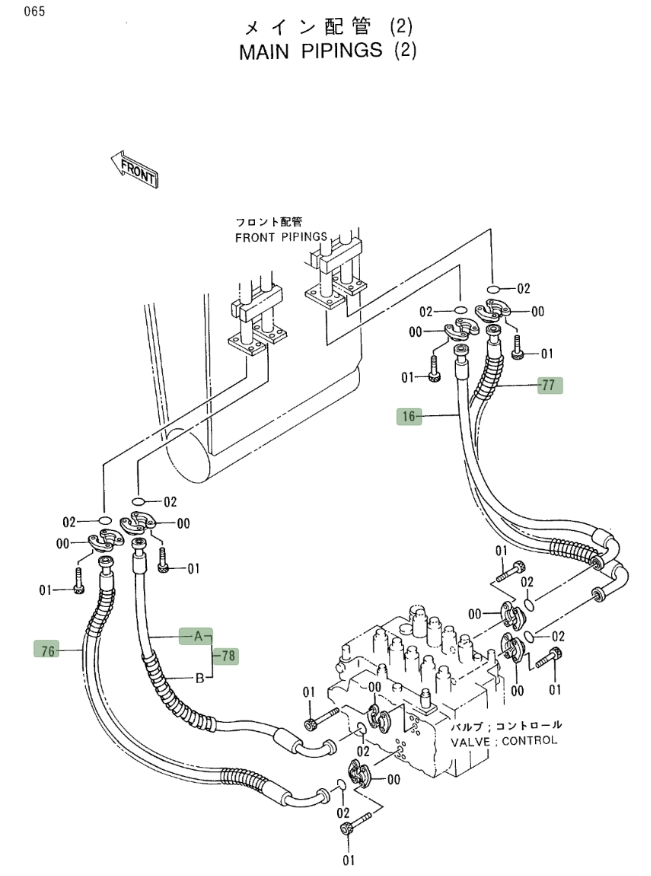

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number 4316272 before removing the hose.

Hitachi EX400LC-3 installation diagram showing hydraulic hose 4316272 at Pipe No. 16 — Hitachi EX400LC-3Part 4316272 · Pipe No. 16Open full-size diagram

Repair specifications

Part number: 4316272
Diagram pipe number: 16
Installation route: 大臂左3
Hose specification: DN25;4SH-16;34.5Mpa
Finished length: 1,720 mm
Working pressure: 34.5 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 8

4345675

Installation route: 铲斗油缸左

Length: 900 mm
Specification: DN25;4SH-16;38.8MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 30

4311057

Installation route: 小臂油缸

Length: 1,000 mm
Specification: DN32;6SP-20;31MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications
