Individual hose record

730502000628 Hose Repair Specifications

Excavator · Sunward · SWE08B · Boom Assembly

Finished length1,250 mm

Locate this hose

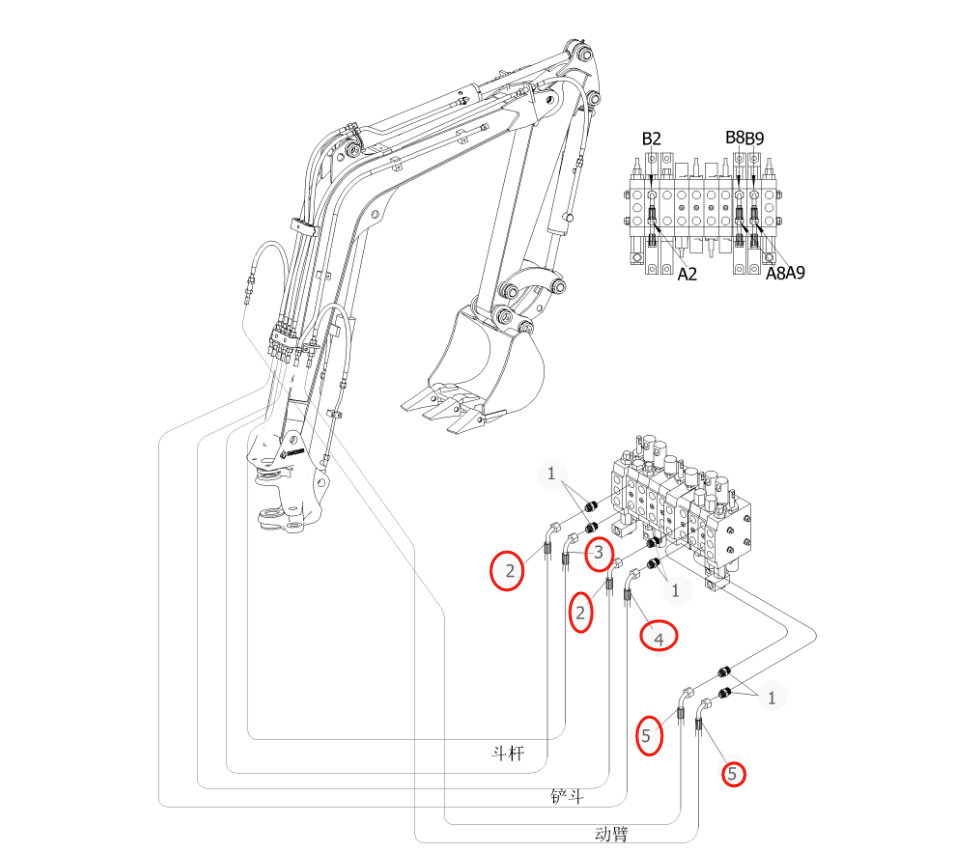

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 730502000628 before removing the hose.

Sunward SWE08B installation diagram showing hydraulic hose 730502000628 at Pipe No. 2 — Sunward SWE08BPart 730502000628 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 730502000628
Diagram pipe number: 2
Installation route: 铲斗~分配阀B8
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,250 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 2

730502000345

Installation route: 大臂摆动油缸~分配阀

Length: 800 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 3

730502003763

Installation route: 大臂摆动油缸~分配阀

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 2

730502000628

Installation route: 小臂~分配阀B2

Length: 1,250 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
