Individual hose record
DS2093190 Hose Repair Specifications
Excavator · Doosan · DX62R-3 · Attachments
Finished length2,740 mm
Locate this hose

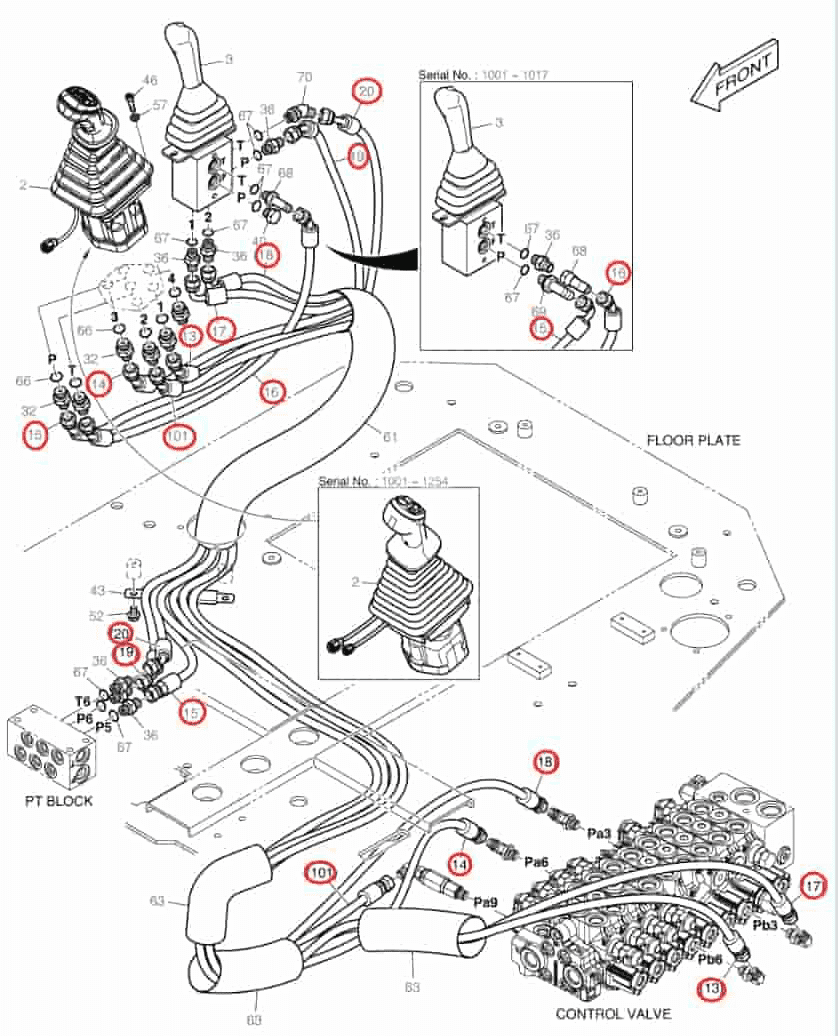

Installation diagram — Pipe No. 17
Locate Pipe No. 17 in the diagram, then confirm part number DS2093190 before removing the hose.
Repair specifications
- Part number
- DS2093190
- Diagram pipe number
- 17
- Installation route
- 推土铲手柄1口~分配阀PB3口
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 2,740 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
