Individual hose record

2184-1196D58 Hose Repair Specifications

Excavator · Doosan · DX160LC · Hydraulic Pump

Finished length820 mm

Locate this hose

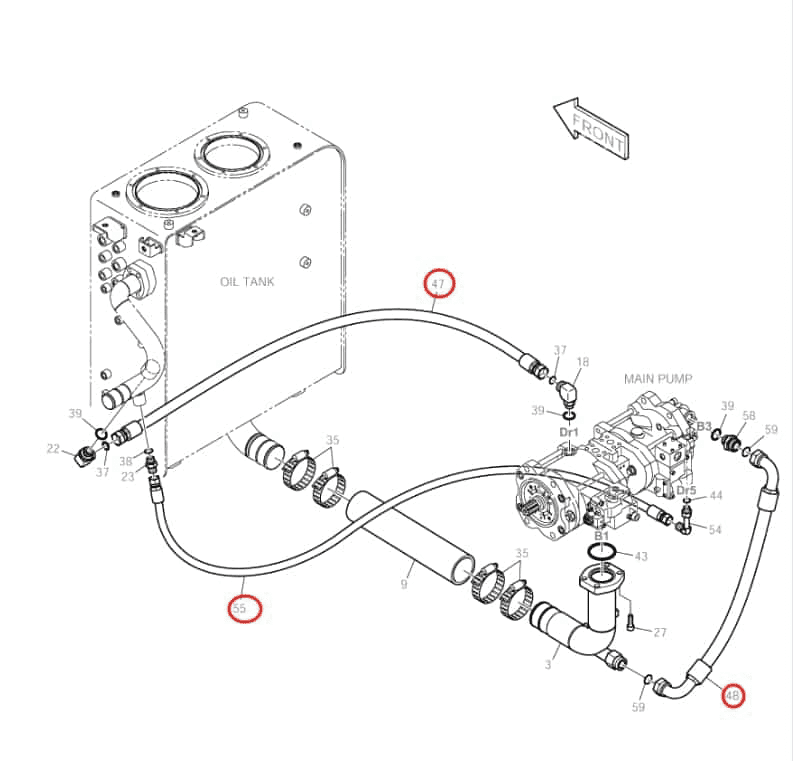

Installation diagram — Pipe No. 47

Locate Pipe No. 47 in the diagram, then confirm part number 2184-1196D58 before removing the hose.

Part number: 2184-1196D58
Diagram pipe number: 47
Installation route: 液压泵DR1口~回油铁管(液压油箱)
Hose specification: DN19;1SN-12;10.5MPa
Finished length: 820 mm
Working pressure: 10.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 48

Installation route: 液压泵B3口~吸油铁管

Length: 480 mm
Specification: DN25;1SN-16;8.8MPa
Left fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 47

Installation route: 液压泵DR1口~回油铁管(液压油箱)

Length: 950 mm
Specification: DN19;1SN-12;10.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 13

Installation route: 液压泵~分配阀P2口(进油)

Length: 1,000 mm
Specification: DN19;4SH-12;42MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
