Individual hose record

KHJ16300 Hose Repair Specifications

Excavator · Case · CX130B · Attachments – Breaker

Finished length3,650 mm

Locate this hose

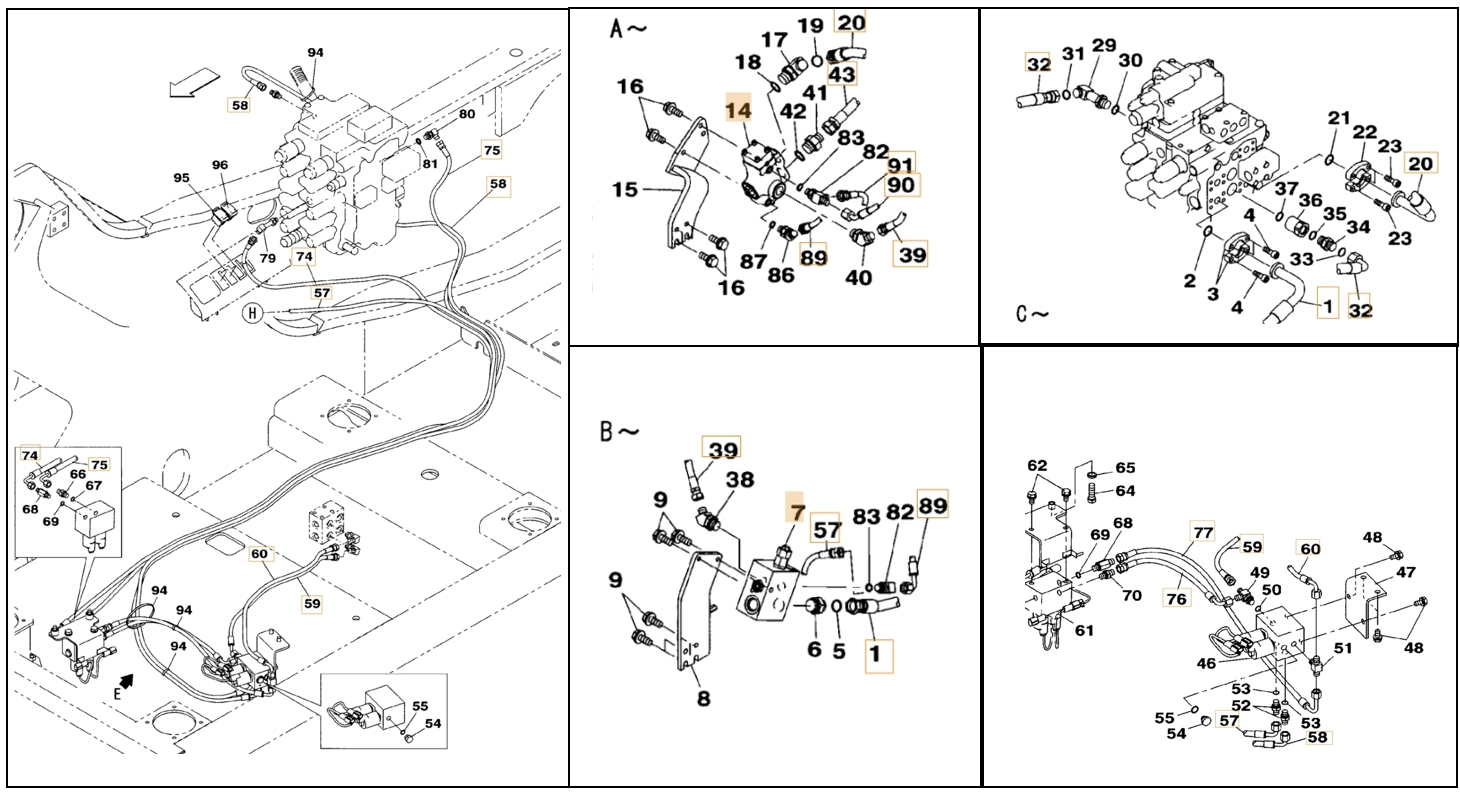

Installation diagram — Pipe No. 58

Locate Pipe No. 58 in the diagram, then confirm part number KHJ16300 before removing the hose.

Case CX130B installation diagram showing hydraulic hose KHJ16300 at Pipe No. 58 — **Case CX130B**Part KHJ16300 · Pipe No. 58Open full-size diagram

Repair specifications

Part number: KHJ16300
Diagram pipe number: 58
Installation route: 电磁阀(破碎器)~分配阀右
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,650 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
