Individual hose record
4668896 Hose Repair Specifications
Excavator · Hitachi · ZX670LC-5G · Swing Motor
Finished length700 mm
Locate this hose

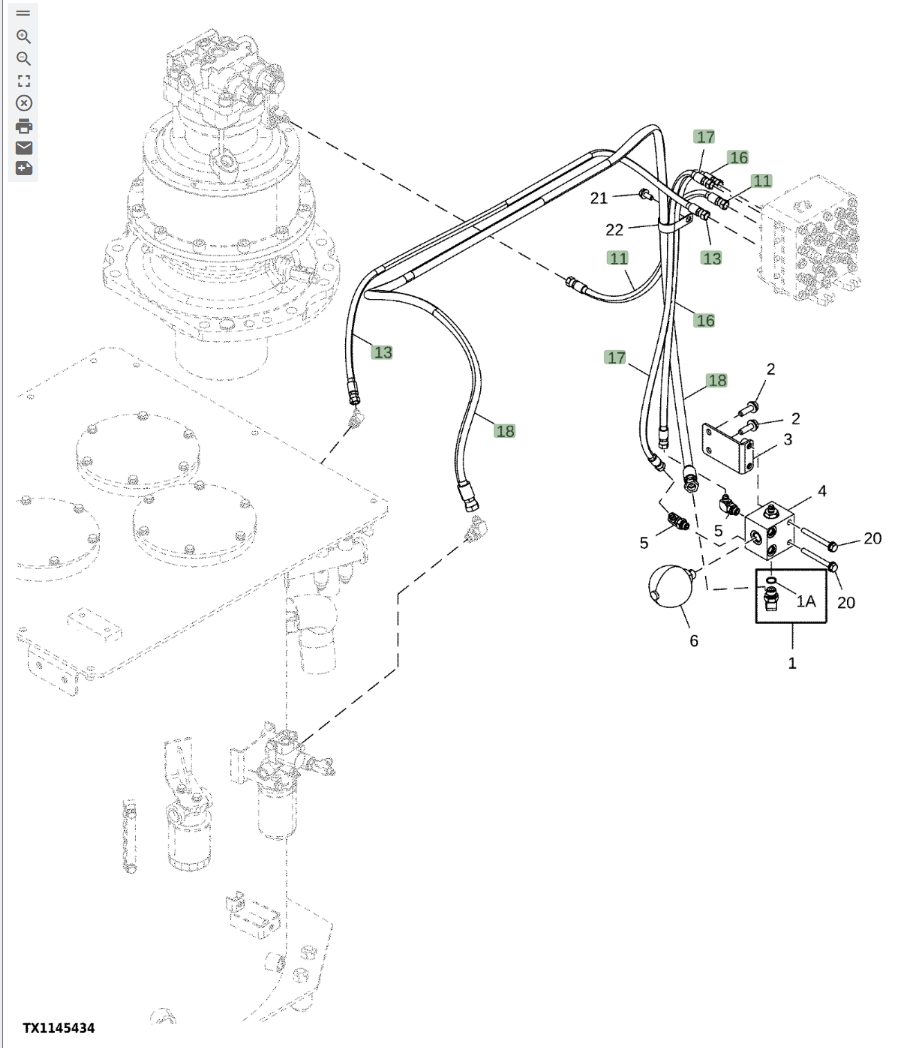

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 4668896 before removing the hose.
Repair specifications
- Part number
- 4668896
- Diagram pipe number
- 11
- Installation route
- 回转马达~中转接头
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 700 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
