Individual hose record

4465617 Hose Repair Specifications

Excavator · Hitachi · ZX250F · Supply and Return Valve

Finished length3,200 mm

Locate this hose

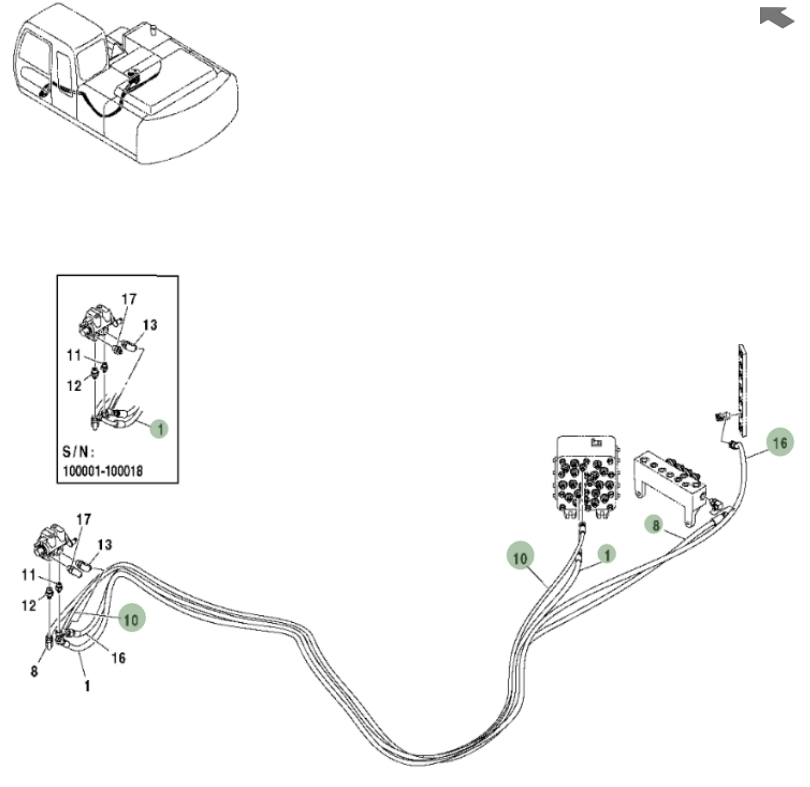

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 4465617 before removing the hose.

Hitachi ZX250F installation diagram showing hydraulic hose 4465617 at Pipe No. 1 — Hitachi ZX250FPart 4465617 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 4465617
Diagram pipe number: 1
Installation route: 进回油阀~中转接头
Hose specification: DN10;1SN-06;18MPa
Finished length: 3,200 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 10

4442173

Installation route: 进回油阀~中转接头

Length: 3,150 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
