Individual hose record
4372796 Hose Repair Specifications
Excavator · Hitachi · EX370-5 · Attachments – Breaker
Finished length310 mm
Locate this hose

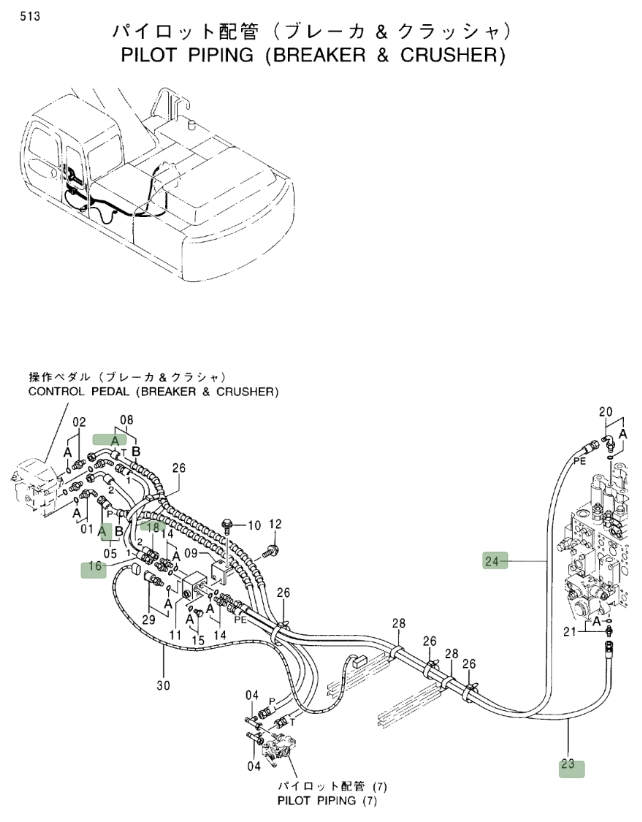

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 4372796 before removing the hose.
Repair specifications
- Part number
- 4372796
- Diagram pipe number
- 16
- Installation route
- 破碎器踏板~过渡阀块(踏板)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 310 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 1,300 mm
- Specification
- DN25;4SH-16;34.5Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 3,100 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Length
- 1,180 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
