Individual hose record
4305229 Hose Repair Specifications
Excavator · Hitachi · ZX190W-6N · Swivel Joint
Finished length1,000 mm
Locate this hose

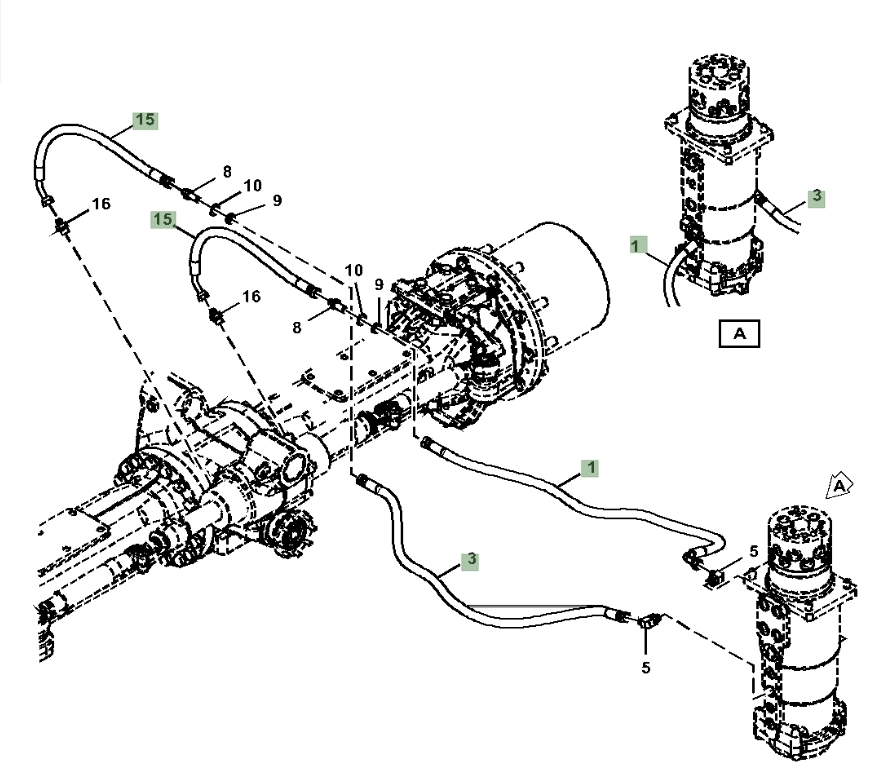

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number 4305229 before removing the hose.
Repair specifications
- Part number
- 4305229
- Diagram pipe number
- 3
- Installation route
- 回转接头~前传动轴
- Hose specification
- DN10;2SN-06;20.5MPa
- Finished length
- 1,000 mm
- Working pressure
- 20.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
