Individual hose record
4691498 Hose Repair Specifications
Excavator · Hitachi · ZX130-5N · Attachments – Breaker
Finished length530 mm
Locate this hose

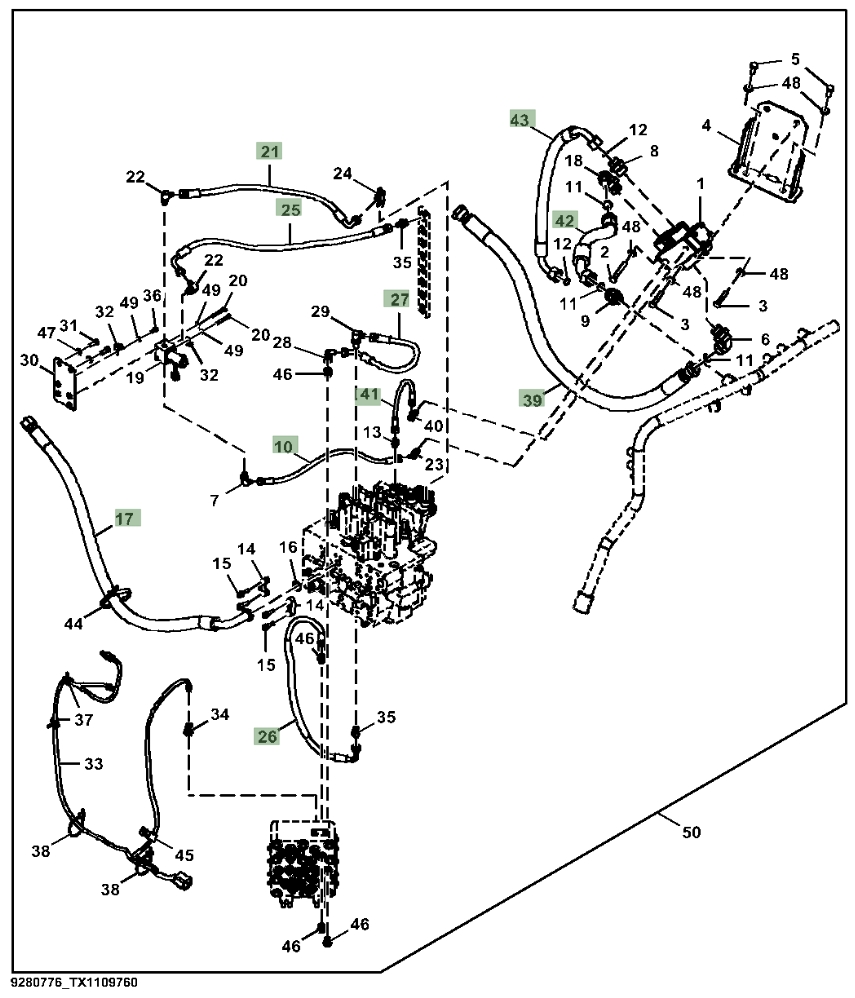

Installation diagram — Pipe No. 42
Locate Pipe No. 42 in the diagram, then confirm part number 4691498 before removing the hose.
Repair specifications
- Part number
- 4691498
- Diagram pipe number
- 42
- Installation route
- 过渡阀块(破碎器)~回油铁管(分配阀)
- Hose specification
- DN25;1SN-16;7Mpa
- Finished length
- 530 mm
- Working pressure
- 7 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Quantity
- 1
