Individual hose record
4292785 Hose Repair Specifications
Excavator · Hitachi · EX550LC-3 · Swing Motor
Finished length450 mm
Locate this hose

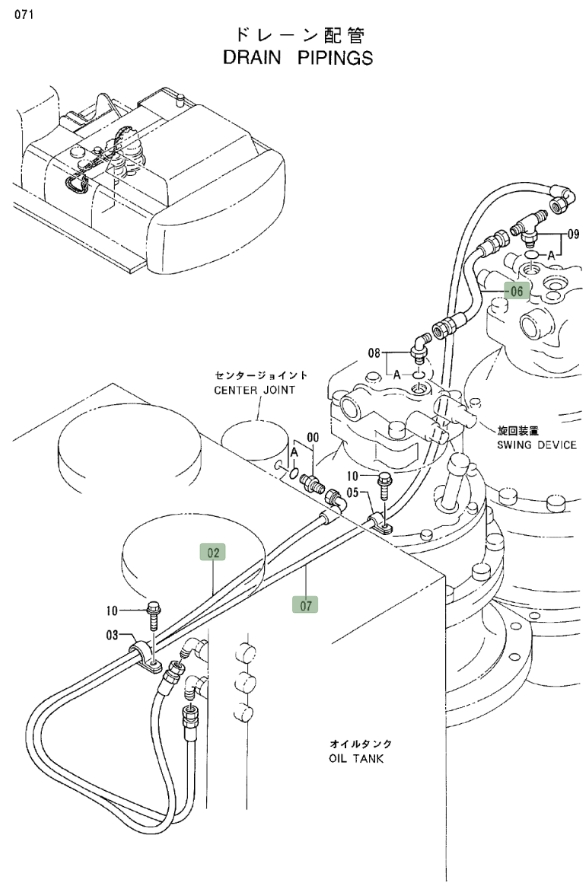

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 4292785 before removing the hose.
Repair specifications
- Part number
- 4292785
- Diagram pipe number
- 6
- Installation route
- 回转马达(左)~回转马达(右)
- Hose specification
- DN10;4层纤维-6;3.5MPa
- Finished length
- 450 mm
- Working pressure
- 3.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
