Individual hose record
4726259 Hose Repair Specifications
Excavator · Hitachi · ZX190W-5N · Control Valve
Finished length1,100 mm
Locate this hose

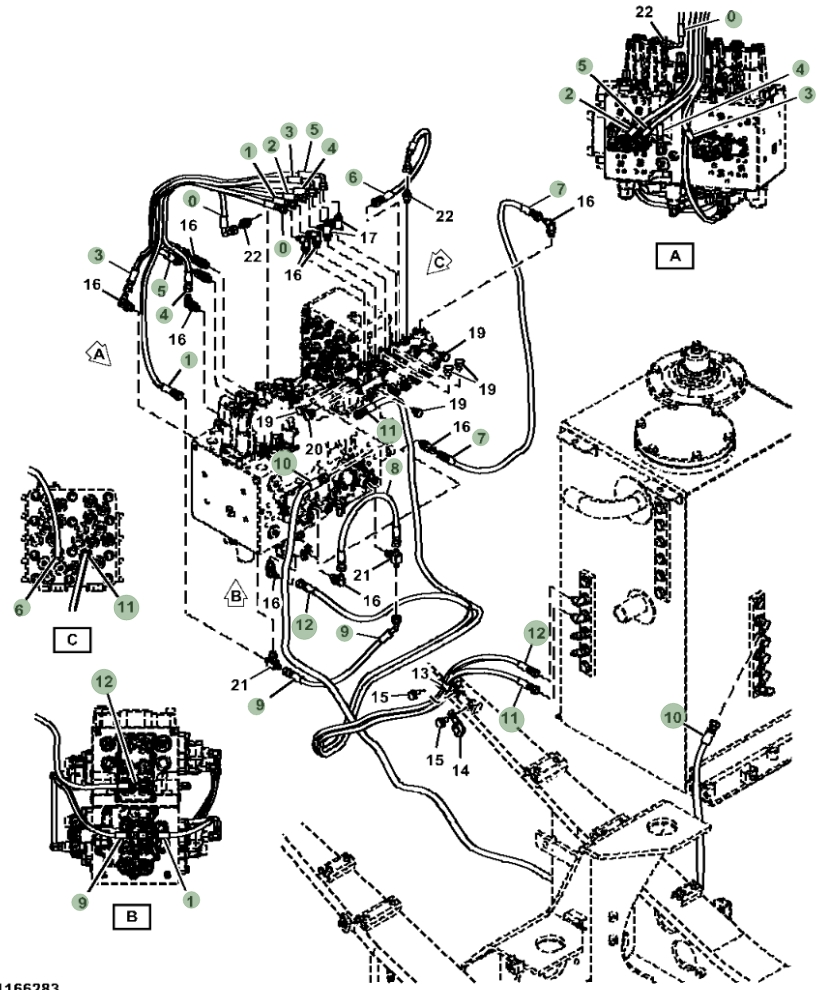

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 4726259 before removing the hose.
Repair specifications
- Part number
- 4726259
- Diagram pipe number
- 1
- Installation route
- 分配阀下~电磁阀
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 1,100 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
