Individual hose record
4332943 Hose Repair Specifications
Excavator · Hitachi · ZX850LC-3 · Hydraulic Tank
Finished length1,400 mm
Locate this hose

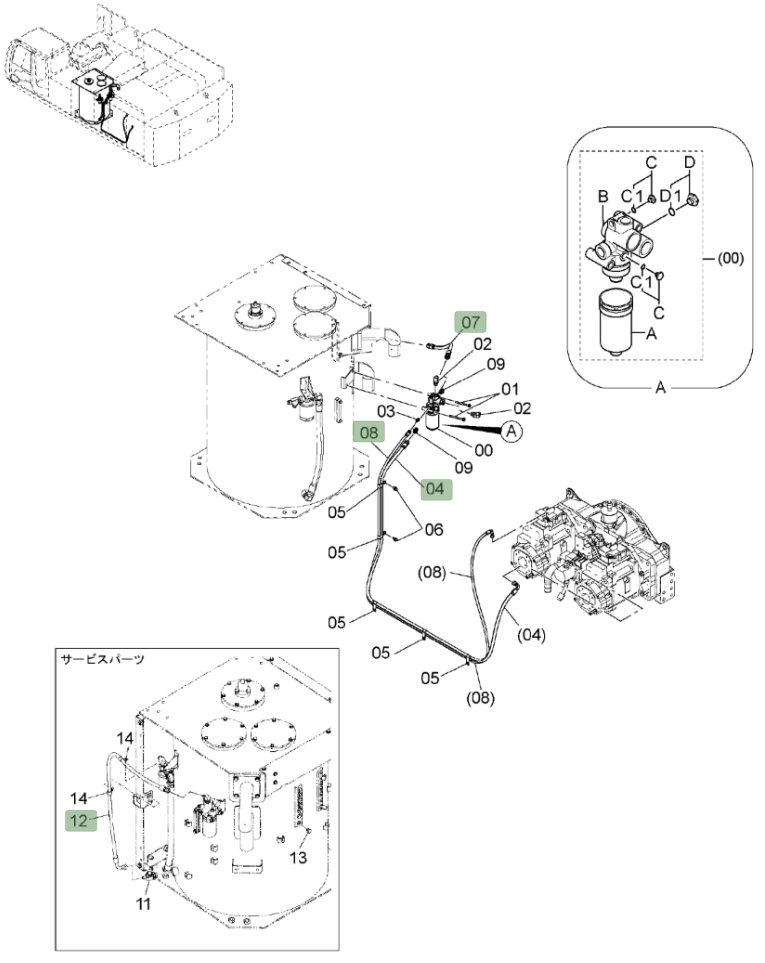

Installation diagram — Pipe No. 12
Locate Pipe No. 12 in the diagram, then confirm part number 4332943 before removing the hose.
Repair specifications
- Part number
- 4332943
- Diagram pipe number
- 12
- Installation route
- 液压油箱~先导滤芯
- Hose specification
- DN13;2SN-08;27.5MPa
- Finished length
- 1,400 mm
- Working pressure
- 27.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
