Individual hose record
4489882 Hose Repair Specifications
Excavator · Hitachi · ZX190W-6N · Control Lever
Finished length1,300 mm
Locate this hose

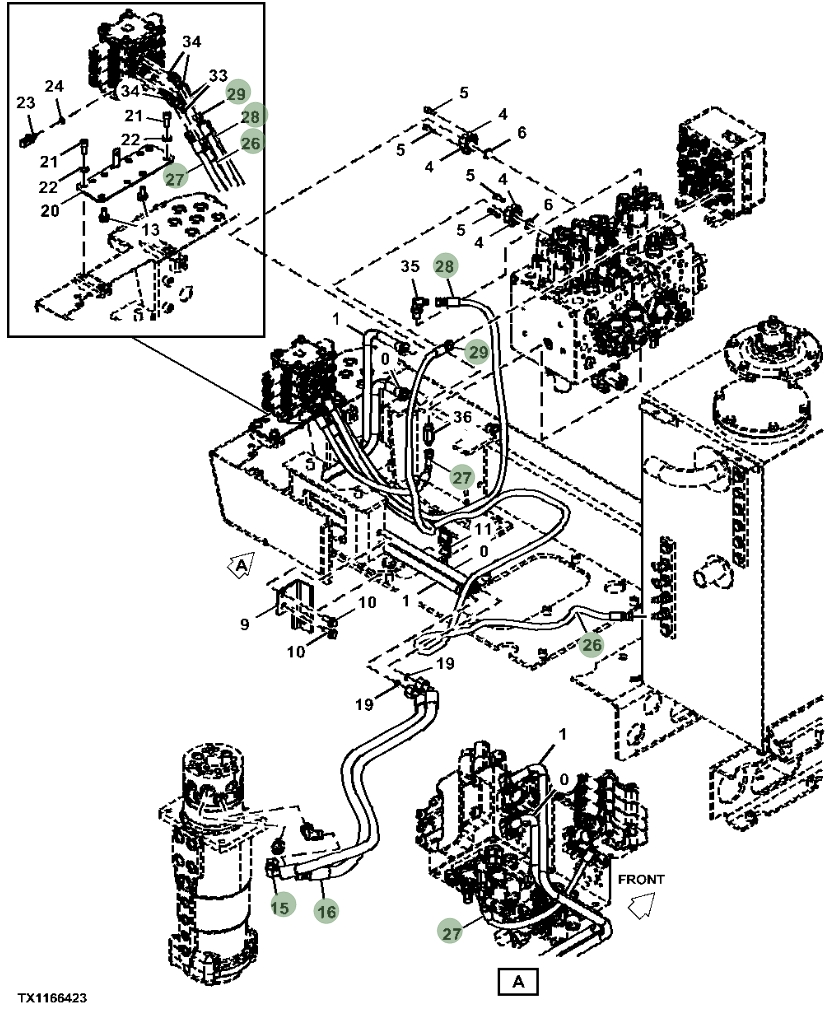

Installation diagram — Pipe No. 29
Locate Pipe No. 29 in the diagram, then confirm part number 4489882 before removing the hose.
Repair specifications
- Part number
- 4489882
- Diagram pipe number
- 29
- Installation route
- 中转接头~电磁阀(隔板)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,300 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
