Individual hose record
DS2094170 Hose Repair Specifications
Excavator · Doosan · DX62R-3 · Solenoid Valve
Finished length1,600 mm
Locate this hose

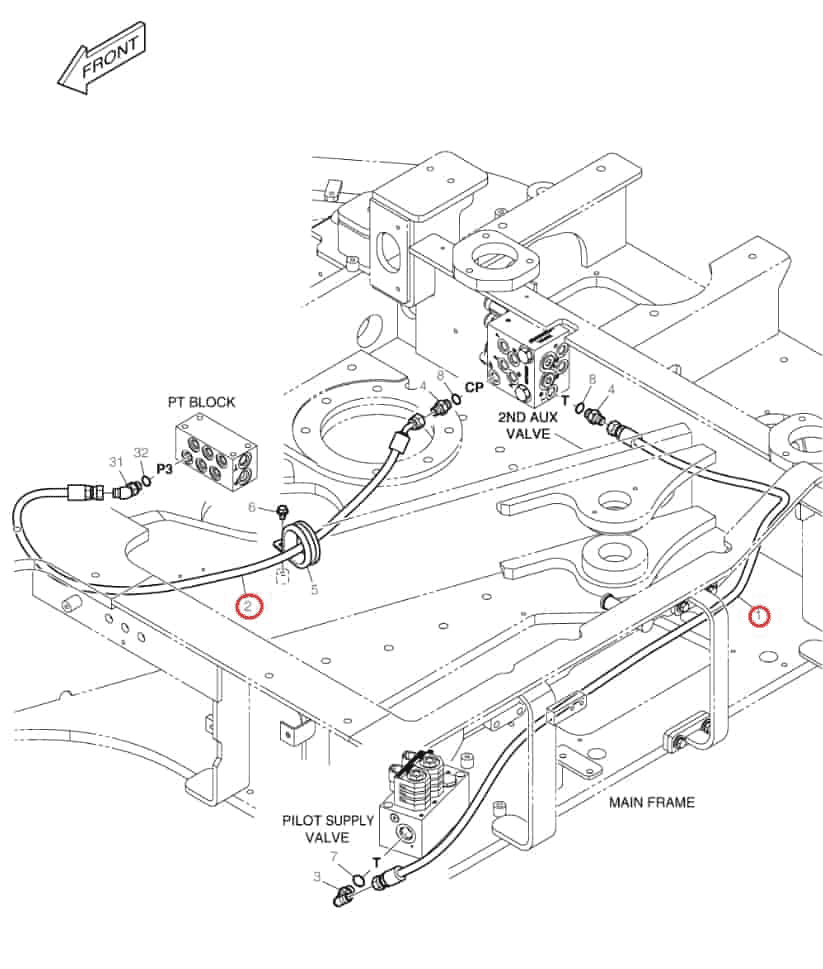

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number DS2094170 before removing the hose.
Repair specifications
- Part number
- DS2094170
- Diagram pipe number
- 1
- Installation route
- 电磁阀T口~控制阀T口
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,600 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
