Individual hose record

DS20111208 Hose Repair Specifications

Excavator · Doosan · DX140LC-5 · Boom Assembly

Finished length700 mm

Locate this hose

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number DS20111208 before removing the hose.

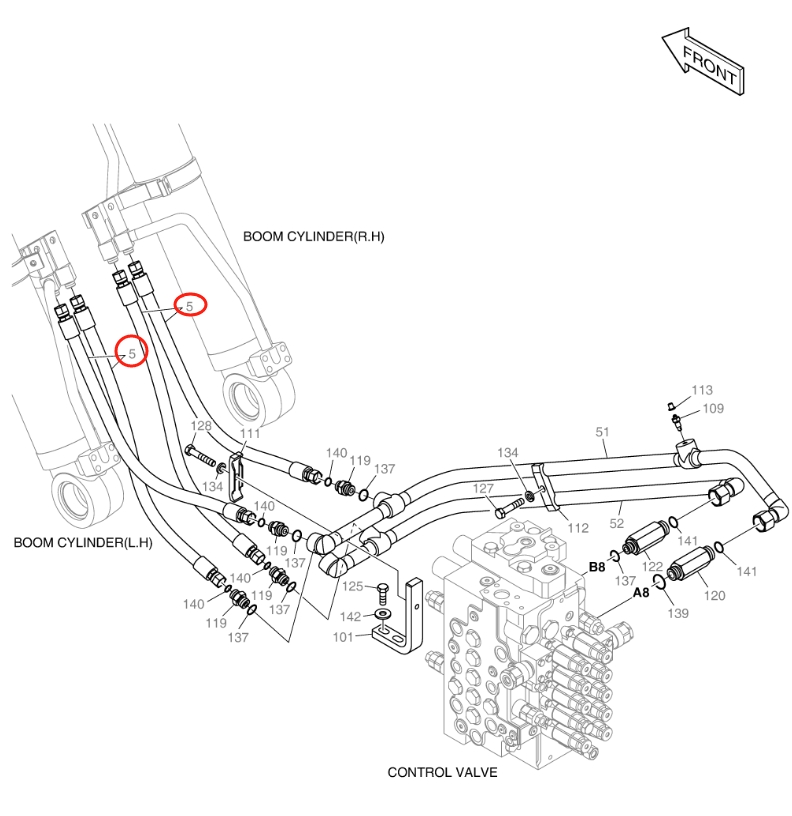

Doosan DX140LC-5 installation diagram showing hydraulic hose DS20111208 at Pipe No. 5 — **Doosan DX140LC-5**Part DS20111208 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: DS20111208
Diagram pipe number: 5
Installation route: 大臂油缸
Hose specification: DN13;4SP-08;41.5MPa
Finished length: 700 mm
Working pressure: 41.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 4

Same system
