Individual hose record

730502003209 Hose Repair Specifications

Excavator · Sunward · SWE470E-3 · Hydraulic Pump

Finished length700 mm

Locate this hose

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 730502003209 before removing the hose.

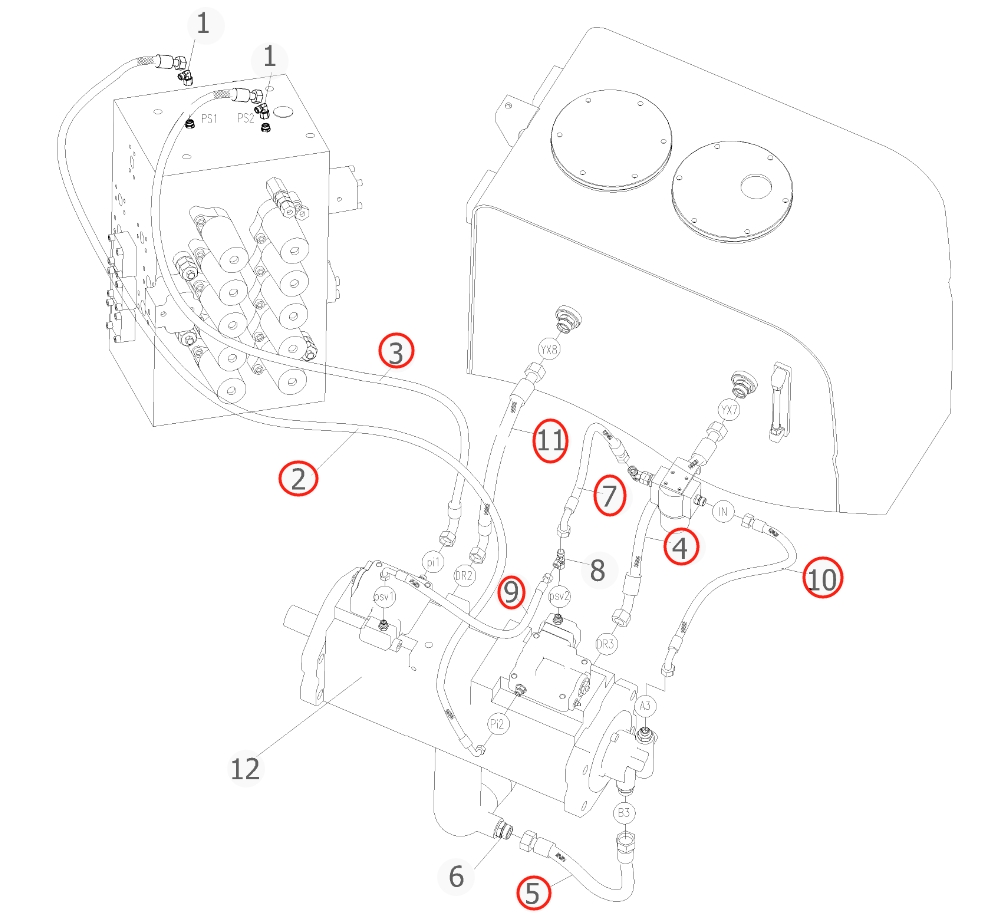

Sunward SWE470E-3 installation diagram showing hydraulic hose 730502003209 at Pipe No. 10
Sunward SWE470E-3Part 730502003209 · Pipe No. 10Open full-size diagram

Repair specifications

Part number
730502003209
Diagram pipe number
10
Installation route
先导泵上A3~液压油滤清器IN
Hose specification
DN10;1SN-06;20.7MPa
Finished length
700 mm
Working pressure
20.7 MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
45°公制内螺纹24°锥带O形圈-轻型
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 4

73050200B511

Installation route: 液压泵后DR3~液压油箱YX7

Length
470 mm
Specification
DN20;1SN-12;12MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
45°公制内螺纹24°锥带O形圈-轻型
View full repair specifications

Diagram Pipe No. 5

730503000337

Installation route: 先导泵下B3~吸油铁管

Length
630 mm
Specification
DN20;1SN-12;12MPa
Left fitting
90°公制内螺纹24°锥带O形圈-轻型
Right fitting
90°公制内螺纹24°锥带O形圈-轻型
View full repair specifications

Diagram Pipe No. 7

730501004419

Installation route: 液压泵上PSV2~液压油滤清器

Length
550 mm
Specification
DN10;1SN-06;20.7MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
公制内螺纹24°锥带O形圈-轻型
View full repair specifications
