Individual hose record
2184-1036D342 Hose Repair Specifications
Excavator · Doosan · DX80R · Swing Motor
Finished length600 mm
Locate this hose

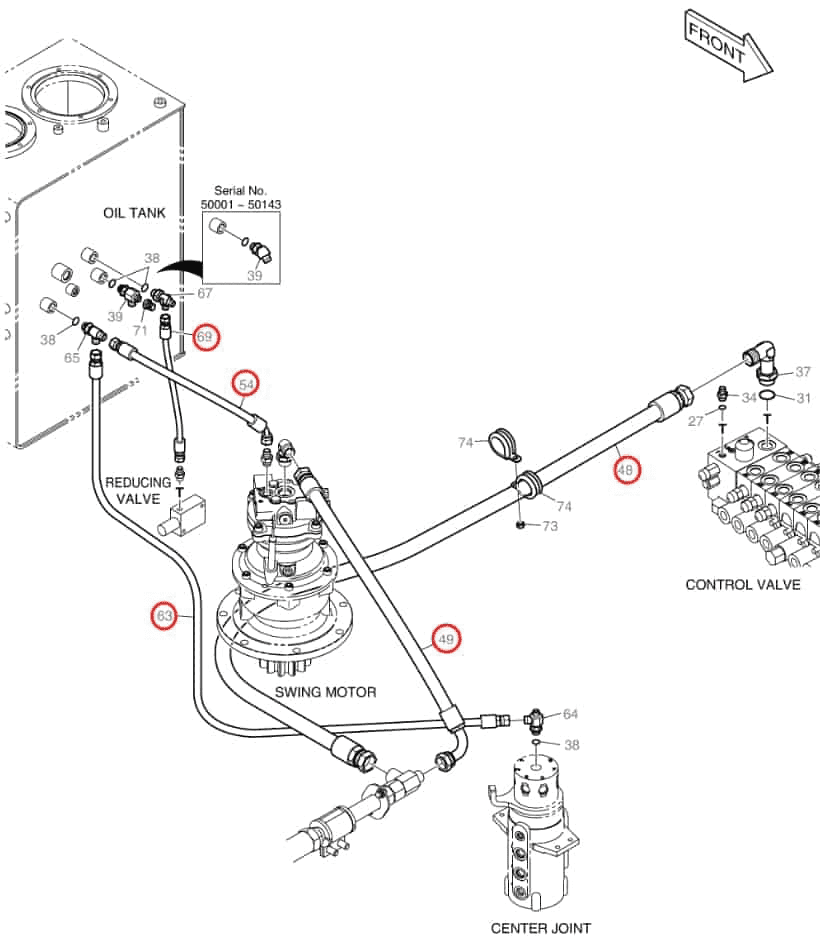

Installation diagram — Pipe No. 49
Locate Pipe No. 49 in the diagram, then confirm part number 2184-1036D342 before removing the hose.
Repair specifications
- Part number
- 2184-1036D342
- Diagram pipe number
- 49
- Installation route
- 回转马达~铁管(散热器)
- Hose specification
- DN19;2SN-12;21.5MPa
- Finished length
- 600 mm
- Working pressure
- 21.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
