Individual hose record
4437175 Hose Repair Specifications
Excavator · Hitachi · ZX200LC · Hydraulic Tank
Finished length3,900 mm
Locate this hose

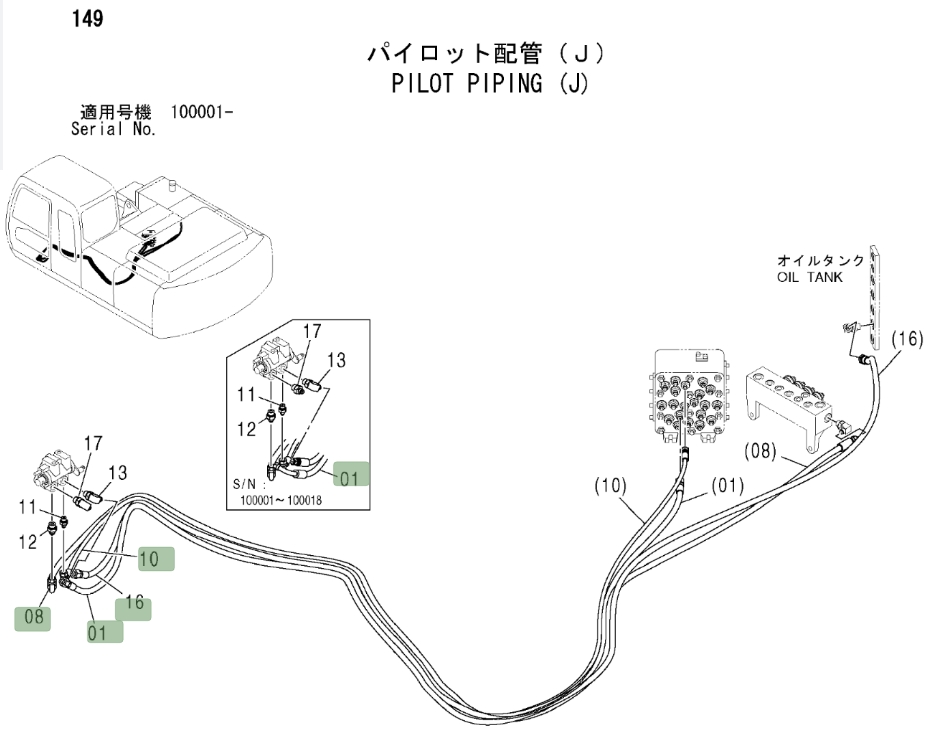

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 4437175 before removing the hose.
Repair specifications
- Part number
- 4437175
- Diagram pipe number
- 16
- Installation route
- 液压油箱~进回油阀
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 3,900 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
