Individual hose record

4375306 Hose Repair Specifications

Excavator · Hitachi · ZX345USLC-6N · Hydraulic Pump

Finished length3,350 mm

Locate this hose

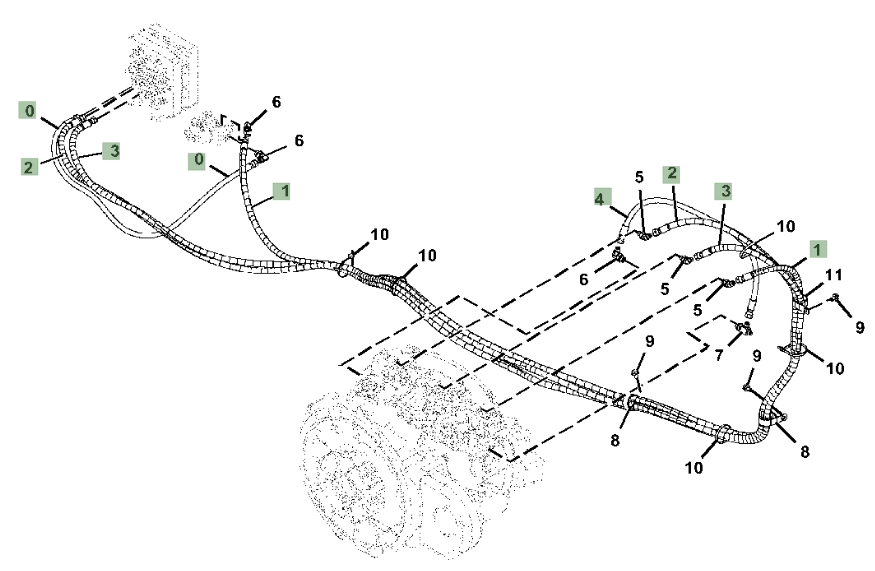

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 4375306 before removing the hose.

Hitachi ZX345USLC-6N installation diagram showing hydraulic hose 4375306 at Pipe No. 1 — Hitachi ZX345USLC-6NPart 4375306 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 4375306
Diagram pipe number: 1
Installation route: 液压泵~电磁阀(液压泵)
Hose specification: DN10;1SN-6;7Mpa
Finished length: 3,350 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 20

4470393

Installation route: 液压泵左~液压泵右

Length: 350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 20

4451995

Installation route: 液压泵左~液压泵右

Length: 350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
