Individual hose record
4250056 Hose Repair Specifications
Excavator · Hitachi · ZX210W-3 · Attachments
Finished length1,100 mm
Locate this hose

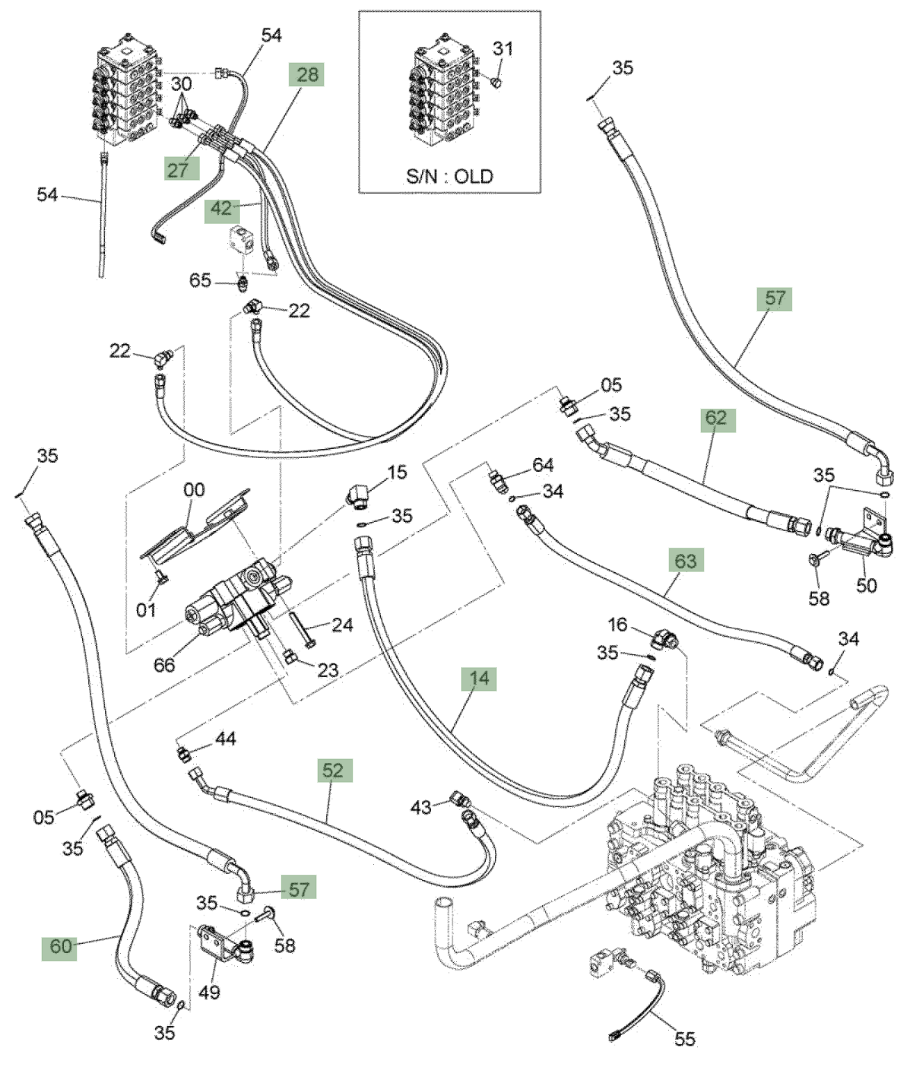

Installation diagram — Pipe No. 63
Locate Pipe No. 63 in the diagram, then confirm part number 4250056 before removing the hose.
Repair specifications
- Part number
- 4250056
- Diagram pipe number
- 63
- Installation route
- 分配阀右~控制阀(分节大臂)
- Hose specification
- DN12;4SP-08;34.5Mpa
- Finished length
- 1,100 mm
- Working pressure
- 34.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
