Individual hose record

DS2091114 Hose Repair Specifications

Excavator · Doosan · DX57W-5 · Control Valve

Finished length280 mm

Locate this hose

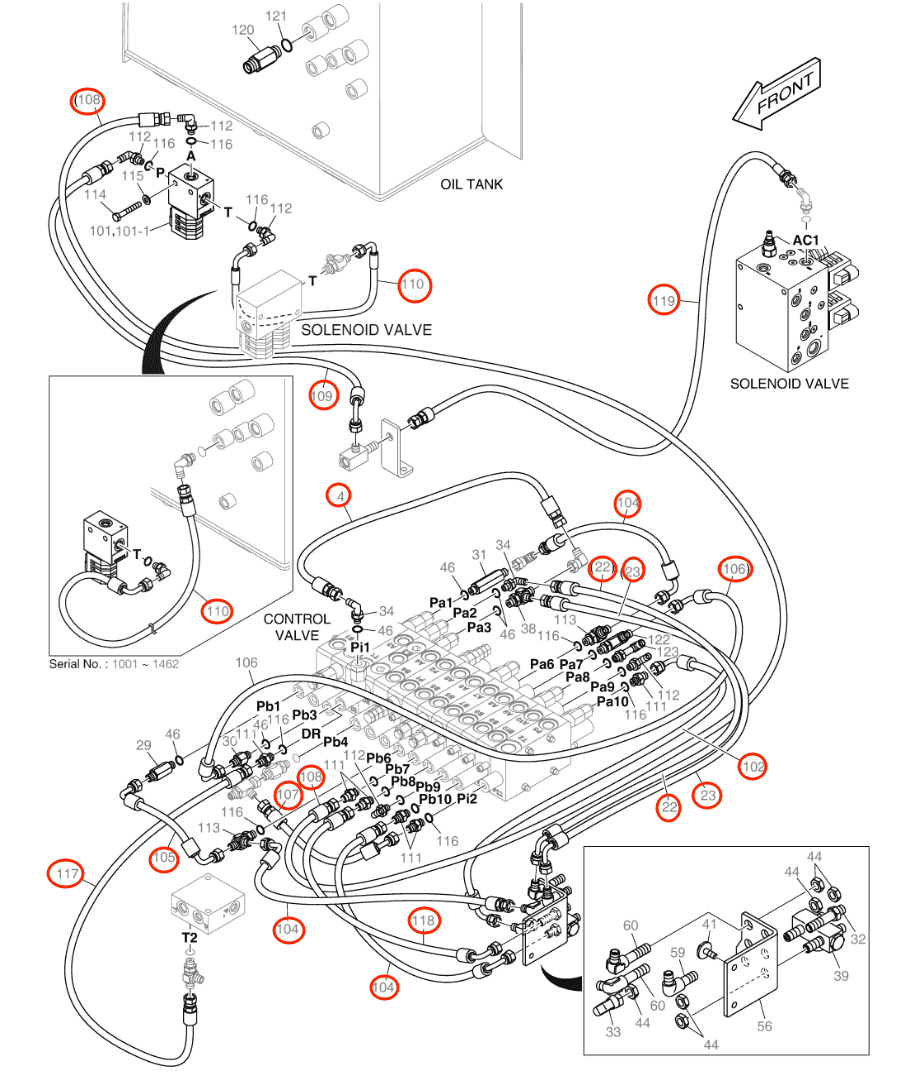

Installation diagram — Pipe No. 105

Locate Pipe No. 105 in the diagram, then confirm part number DS2091114 before removing the hose.

Part number: DS2091114
Diagram pipe number: 105
Installation route: 分配阀PB1口~分配阀PB6口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 280 mm
Working pressure: 22.5 MPa
Left fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 6

Installation route: 分配阀PA10口~电磁阀OA口

Length: 540 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 11

Installation route: 分配阀PA4口~电磁阀PBR口

Length: 1,160 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. 5

Installation route: 分配阀PB1口~分配阀PB6口

Length: 300 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
