Individual hose record
4702359 Hose Repair Specifications
Excavator · Hitachi · ZX870LC-5B · Hydraulic Pump
Finished length2,650 mm
Locate this hose

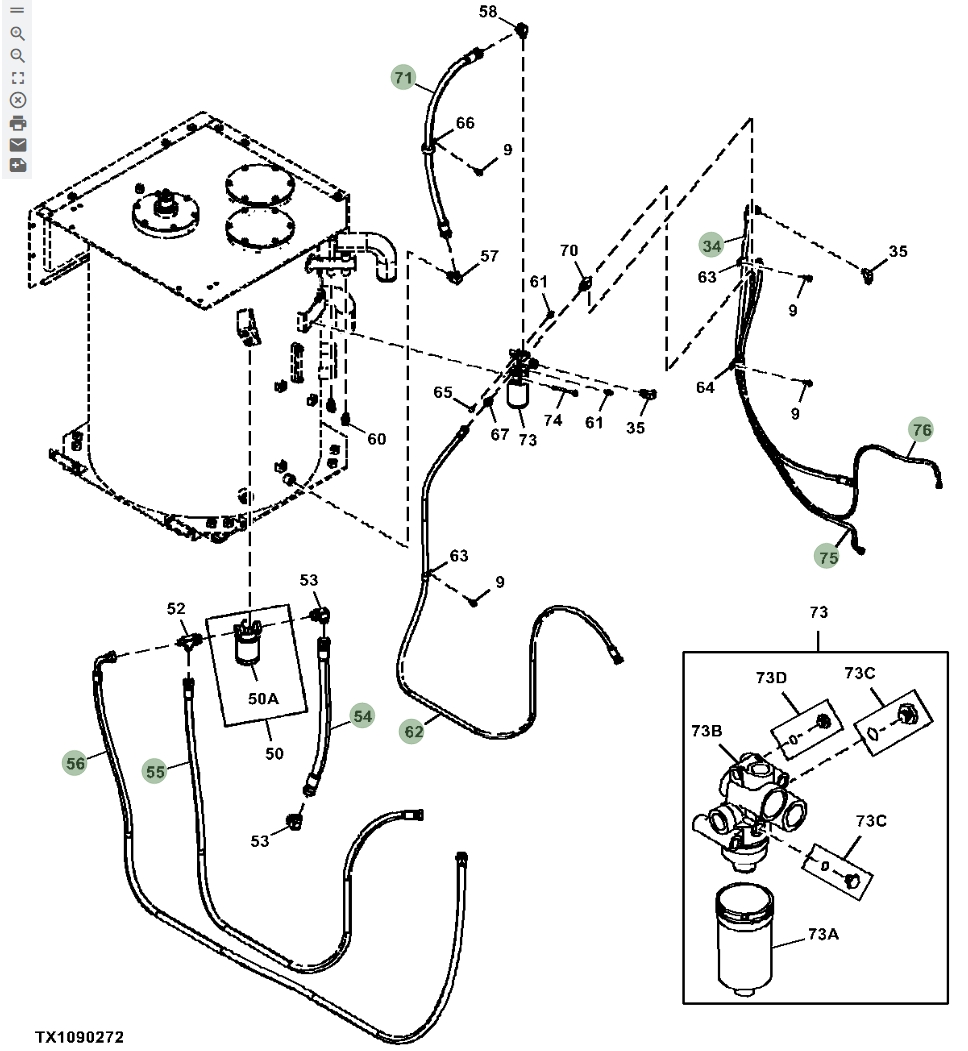

Installation diagram — Pipe No. 55
Locate Pipe No. 55 in the diagram, then confirm part number 4702359 before removing the hose.
Repair specifications
- Part number
- 4702359
- Diagram pipe number
- 55
- Installation route
- 液压泵~先导滤芯
- Hose specification
- DN19;4层纤维-12;3.5MPa
- Finished length
- 2,650 mm
- Working pressure
- 3.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
