Individual hose record
4437944 Hose Repair Specifications
Excavator · Hitachi · ZX120 · Attachments
Finished length650 mm
Locate this hose

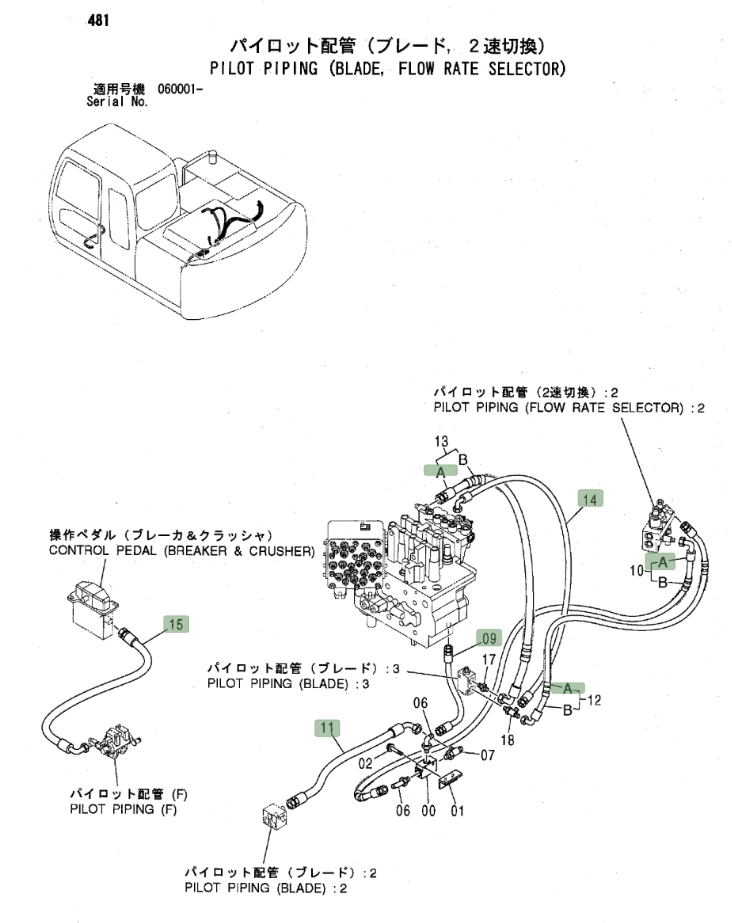

Installation diagram — Pipe No. 13A
Locate Pipe No. 13A in the diagram, then confirm part number 4437944 before removing the hose.
Repair specifications
- Part number
- 4437944
- Diagram pipe number
- 13A
- Installation route
- 电磁阀~过渡阀块(分配阀)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 650 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
