Individual hose record
4348070 Hose Repair Specifications
Excavator · Hitachi · EX400LC-3C · Attachments – Breaker
Finished length1,850 mm
Locate this hose

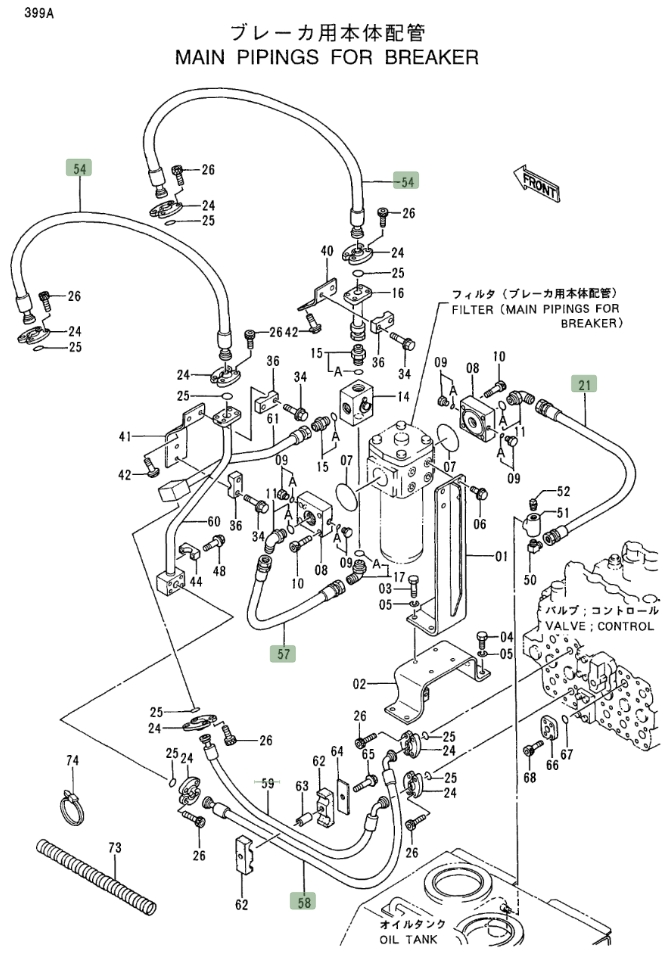

Installation diagram — Pipe No. 58
Locate Pipe No. 58 in the diagram, then confirm part number 4348070 before removing the hose.
Repair specifications
- Part number
- 4348070
- Diagram pipe number
- 58
- Installation route
- 分配阀左~铁管(破碎器)
- Hose specification
- DN32;4SP-20;32Mpa
- Finished length
- 1,850 mm
- Working pressure
- 32 MPa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- 70°法兰-重型
- Quantity
- 1
