Individual hose record
KHJ2194 Hose Repair Specifications
Excavator · Case · CX380C LC · Control Valve
Finished length650 mm
Locate this hose

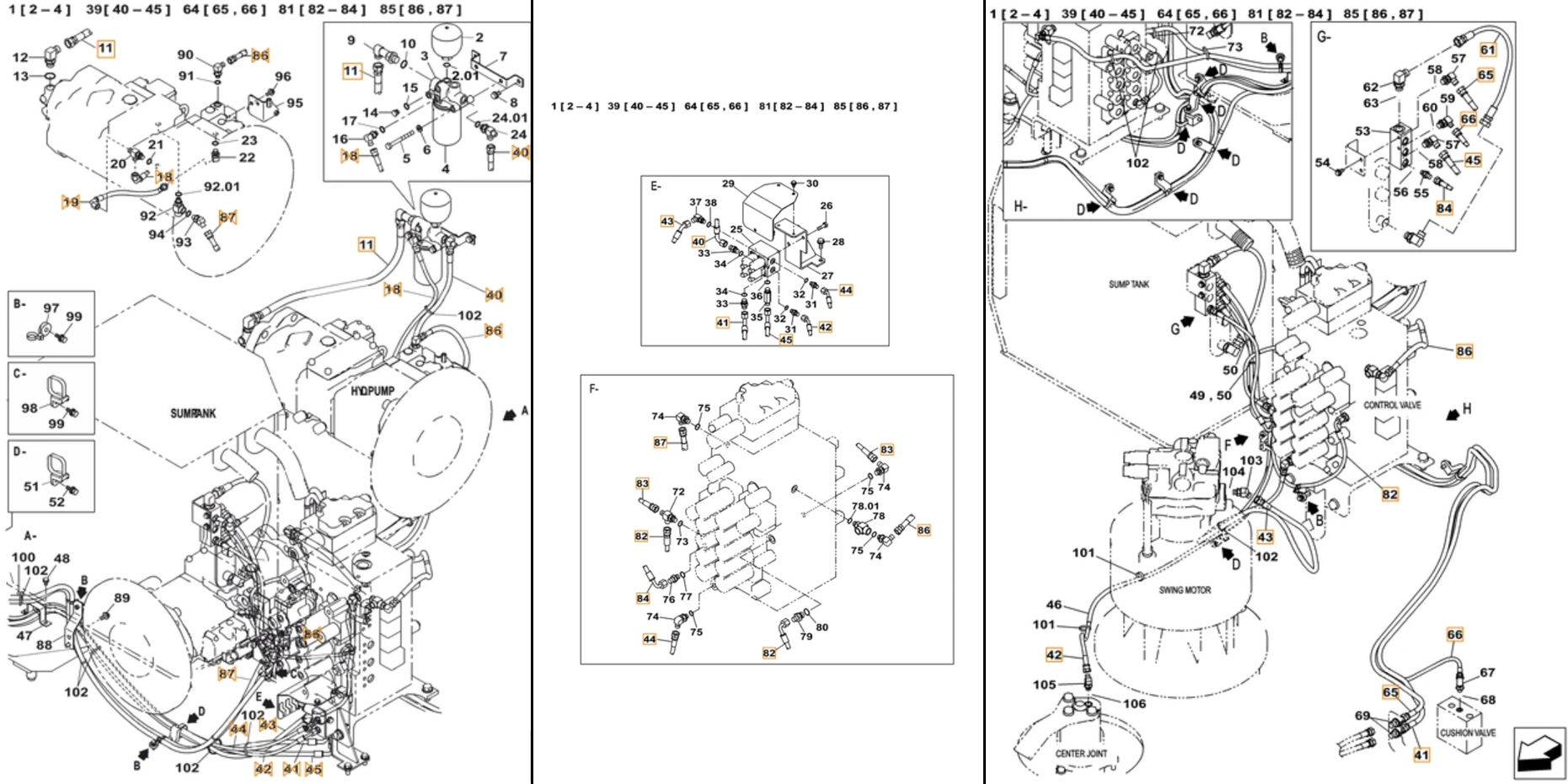

Installation diagram — Pipe No. 82
Locate Pipe No. 82 in the diagram, then confirm part number KHJ2194 before removing the hose.
Repair specifications
- Part number
- KHJ2194
- Diagram pipe number
- 82
- Installation route
- 分配阀前左~分配阀右
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 650 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 90°英制内螺纹60°内锥
- Right fitting
- 英制内螺纹60°内锥
- Quantity
- 1
