Individual hose record

DS2093393 Hose Repair Specifications

Excavator · Doosan · DX62R-3 · Control Lever

Finished length2,400 mm

Locate this hose

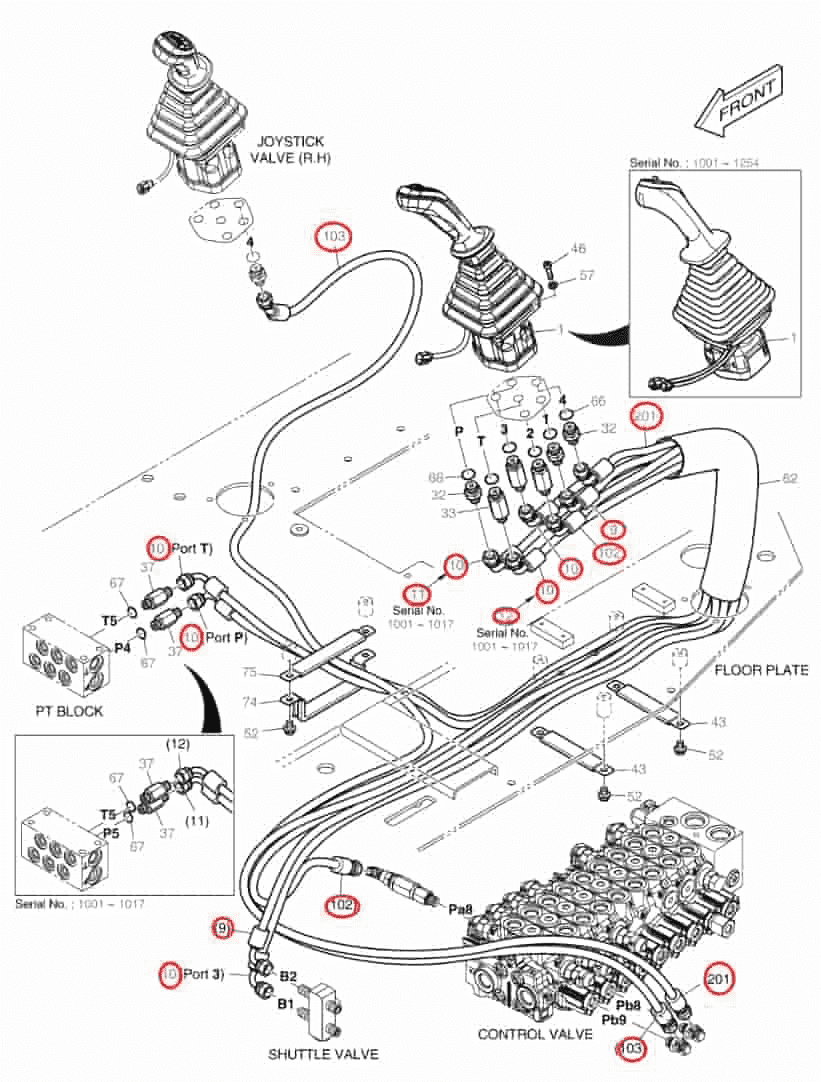

Installation diagram — Pipe No. 201

Locate Pipe No. 201 in the diagram, then confirm part number DS2093393 before removing the hose.

Part number: DS2093393
Diagram pipe number: 201
Installation route: 左手柄4口~分配阀PB8口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,400 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 4

Installation route: 分配阀PA8口~模式转换阀A3口

Length: 1,050 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 41

Installation route: 分配阀PA9口~模式转换阀B3口

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 2

Installation route: 模式转换阀B1口~分配阀PB9口

Diagram Pipe No. 15

Installation route: 右手柄P口~进回油阀P5口

Length: 220 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 16

Installation route: 右手柄T口~推土铲手柄T口

Length: 300 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. 51

Installation route: 模式转换阀A1口~分配阀PB8口

Length: 1,200 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
