Individual hose record

730501001405 Hose Repair Specifications

Excavator · Sunward · SWE215E · Control Lever

Finished length2,950 mm

Locate this hose

Installation diagram — Pipe No. 46

Locate Pipe No. 46 in the diagram, then confirm part number 730501001405 before removing the hose.

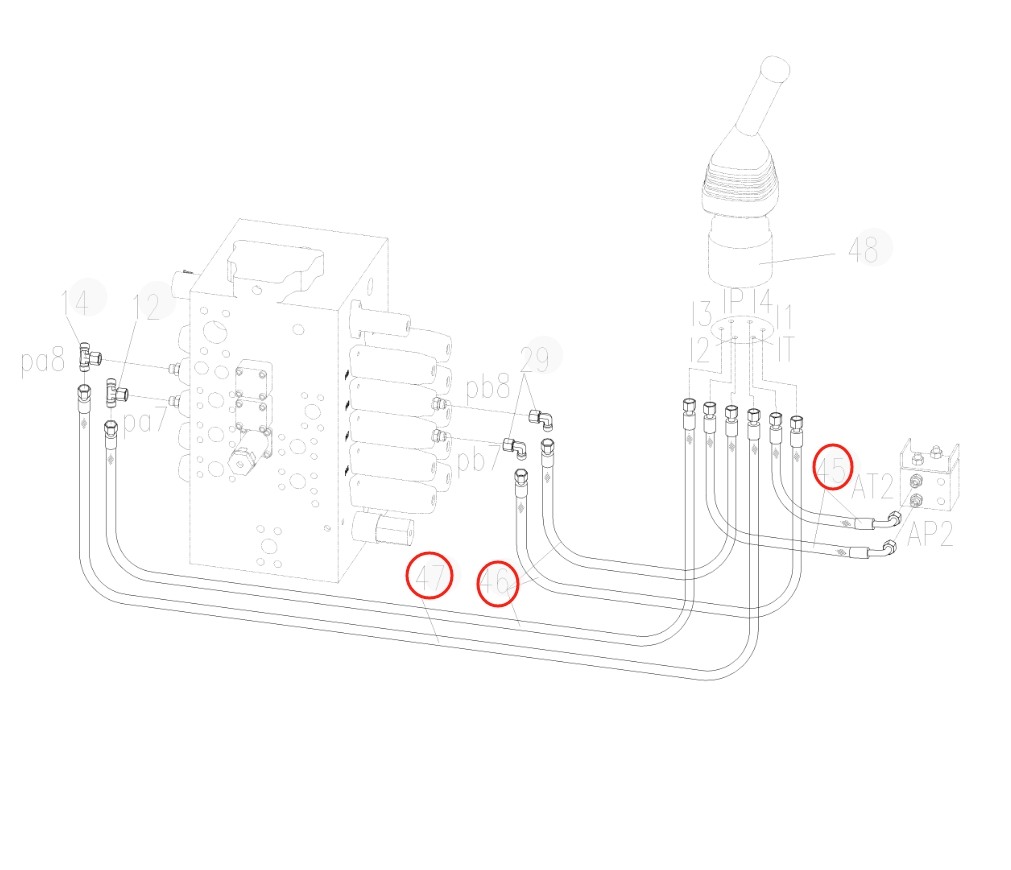

Sunward SWE215E installation diagram showing hydraulic hose 730501001405 at Pipe No. 46 — Sunward SWE215EPart 730501001405 · Pipe No. 46Open full-size diagram

Repair specifications

Part number: 730501001405
Diagram pipe number: 46
Installation route: 右手柄~分配阀左
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,950 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 4

730501000574

Installation route: 右手柄I2~模式切换阀Q3

Length: 1,850 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 3

730501001026

Installation route: 右手柄I4~模式切换阀Q7

Length: 1,850 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 46

730501001405

Installation route: 右手柄~分配阀右

Length: 2,950 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 45

730502002435

Installation route: 左手柄~进回油阀

Length: 1,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 45

730502002435

Installation route: 右手柄~进回油阀

Length: 1,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
