4203058 Hose Repair Specifications

Excavator · Hitachi · EX270LC · Pedal

Finished length990 mm

Locate this hose

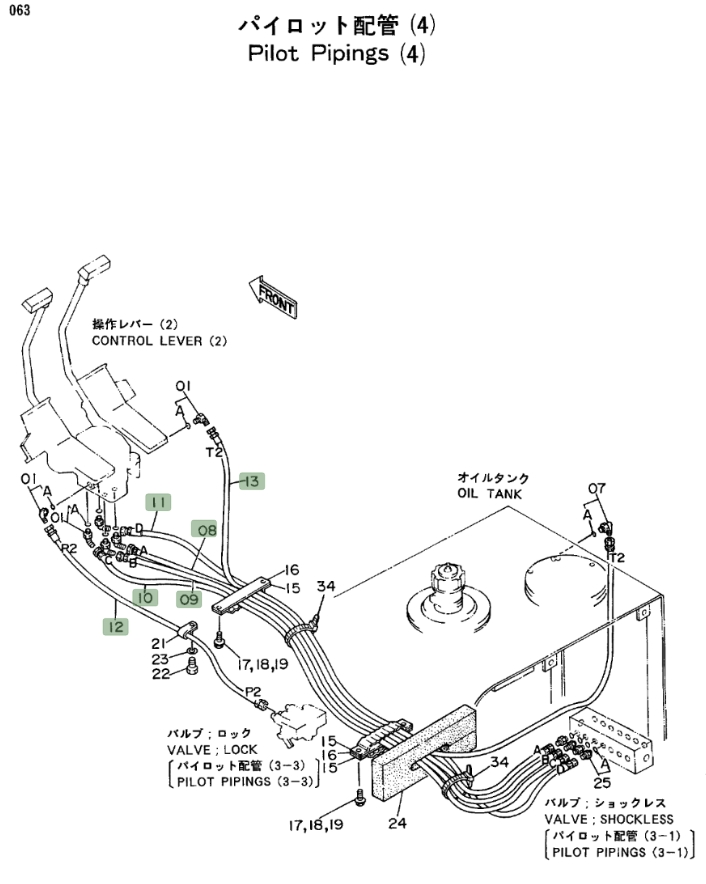

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number 4203058 before removing the hose.

Hitachi EX270LC installation diagram showing hydraulic hose 4203058 at Pipe No. 12 — Hitachi EX270LCPart 4203058 · Pipe No. 12Open full-size diagram

Repair specifications

Part number: 4203058
Diagram pipe number: 12
Installation route: 行走踏板~进回油阀
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 990 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 10

4203048

Installation route: 行走踏板~中转接头

Length: 1,890 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 8

4203046

Installation route: 行走踏板~中转接头

Length: 1,760 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 9

4203047

Installation route: 行走踏板~中转接头

Length: 1,780 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 11

4203049

Installation route: 行走踏板~中转接头

Length: 1,930 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 13

4203059

Installation route: 行走踏板~液压油箱

Length: 2,610 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
