- Length
- 1,300 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Individual hose record
DS2091277 Hose Repair Specifications
Excavator · Doosan · DX85R-3 · Grease Lines
Finished length1,300 mm
Locate this hose

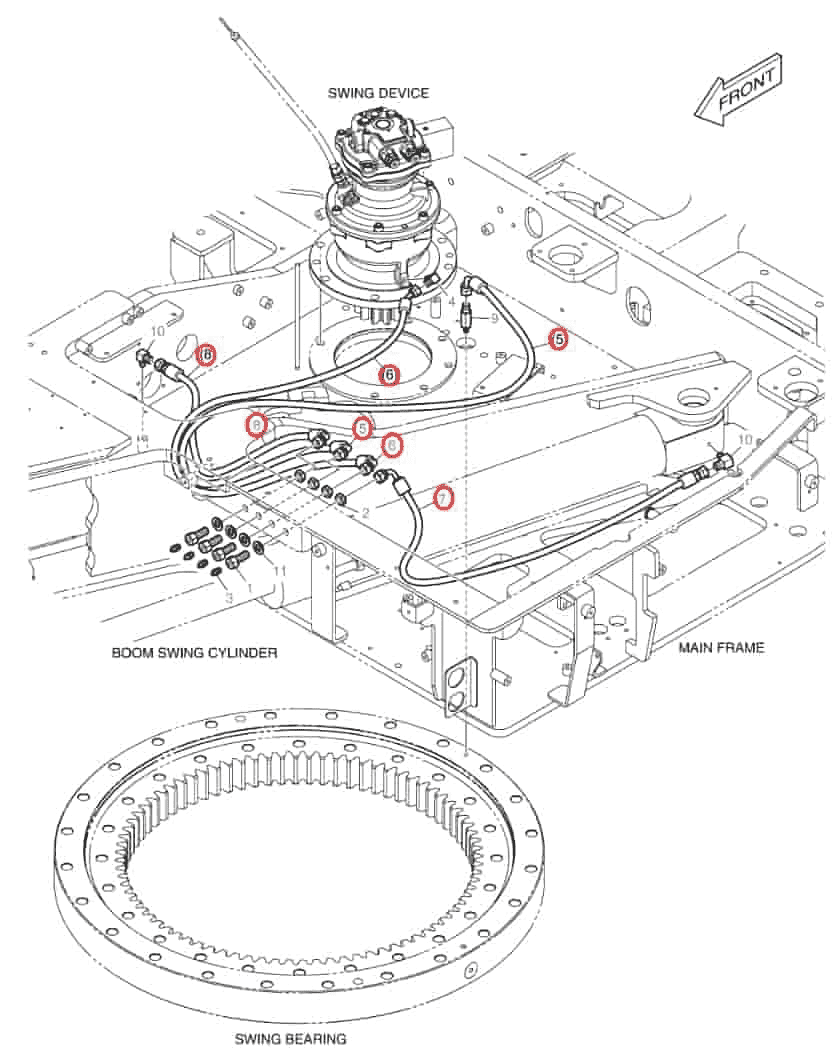

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number DS2091277 before removing the hose.
Repair specifications
- Part number
- DS2091277
- Diagram pipe number
- 5
- Installation route
- 回转齿圈黄油管
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,300 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
