Individual hose record

DS2093130 Hose Repair Specifications

Excavator · Doosan · DX60R · Attachments – Breaker

Finished length260 mm

Locate this hose

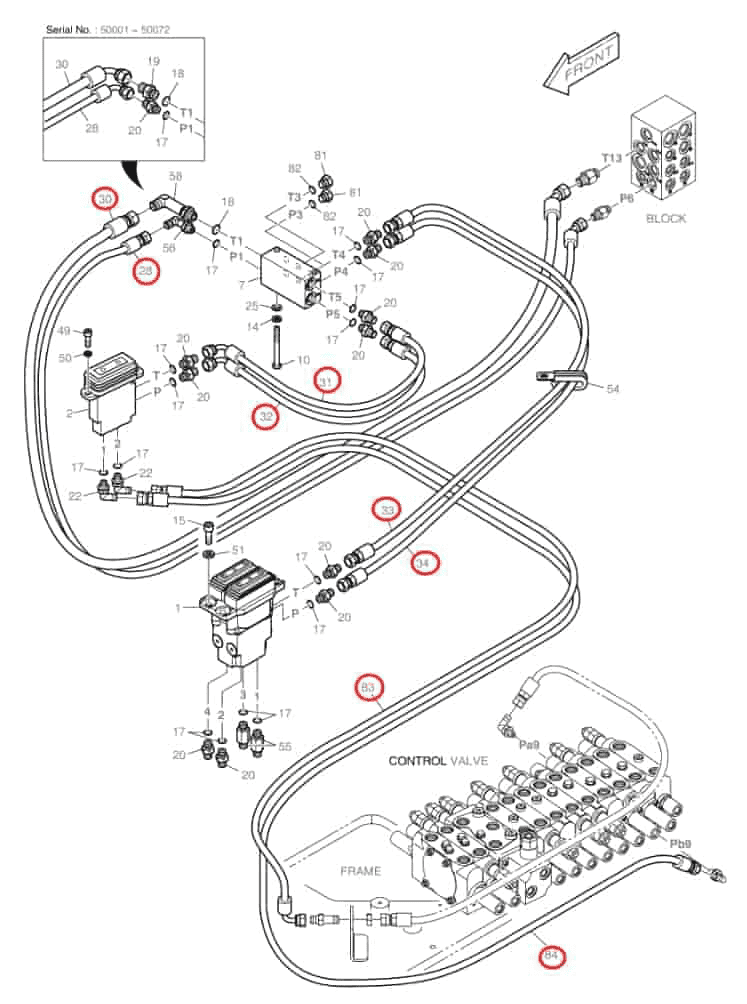

Installation diagram — Pipe No. 32

Locate Pipe No. 32 in the diagram, then confirm part number DS2093130 before removing the hose.

Part number: DS2093130
Diagram pipe number: 32
Installation route: 破碎器踏板P口~过渡阀块(驾驶室)P5口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 260 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 31

Installation route: 破碎器踏板T口~过渡阀块(驾驶室)T5口

Length: 260 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 4

Installation route: 小臂破碎器截止阀

Length: 550 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 83

Installation route: 破碎器踏板2口~过渡接头(车架)

Length: 1,300 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 2

Installation route: 小臂破碎器截止阀

Length: 810 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
