Individual hose record
4611725 Hose Repair Specifications
Excavator · Hitachi · ZX290F-3 · Attachments
Finished length1,550 mm
Locate this hose

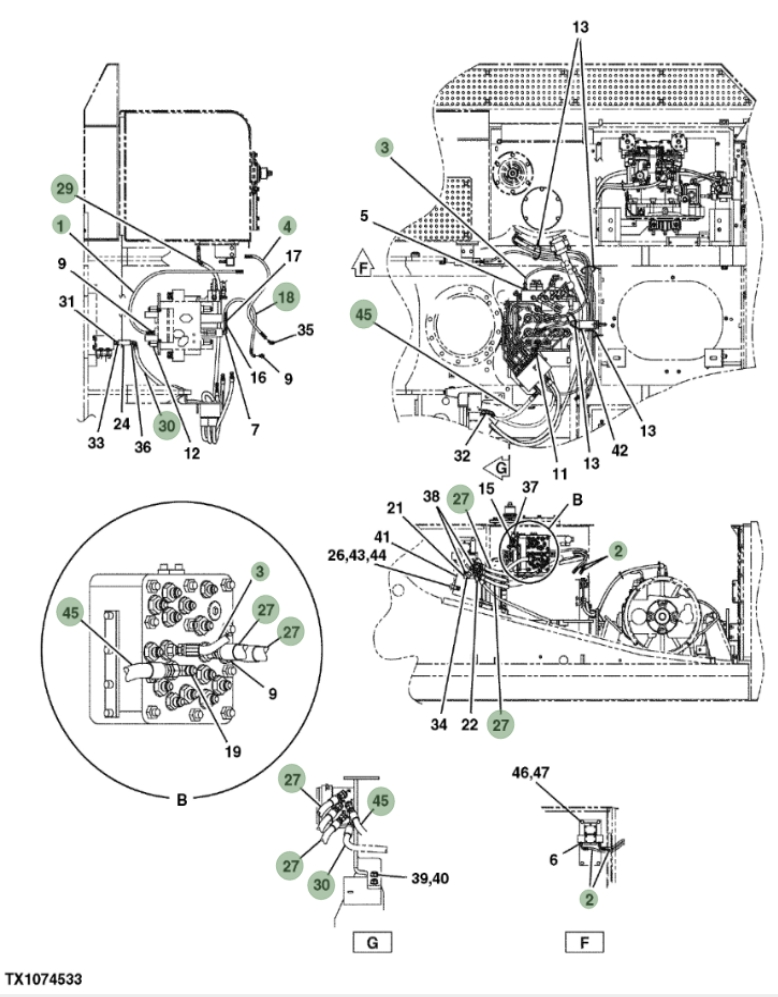

Installation diagram — Pipe No. 45
Locate Pipe No. 45 in the diagram, then confirm part number 4611725 before removing the hose.
Repair specifications
- Part number
- 4611725
- Diagram pipe number
- 45
- Installation route
- 中转接头~过渡阀块(附加装置)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,550 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
