Individual hose record

4207949 Hose Repair Specifications

Excavator · Hitachi · EX300LC · Swivel Joint

Finished length1,730 mm

Locate this hose

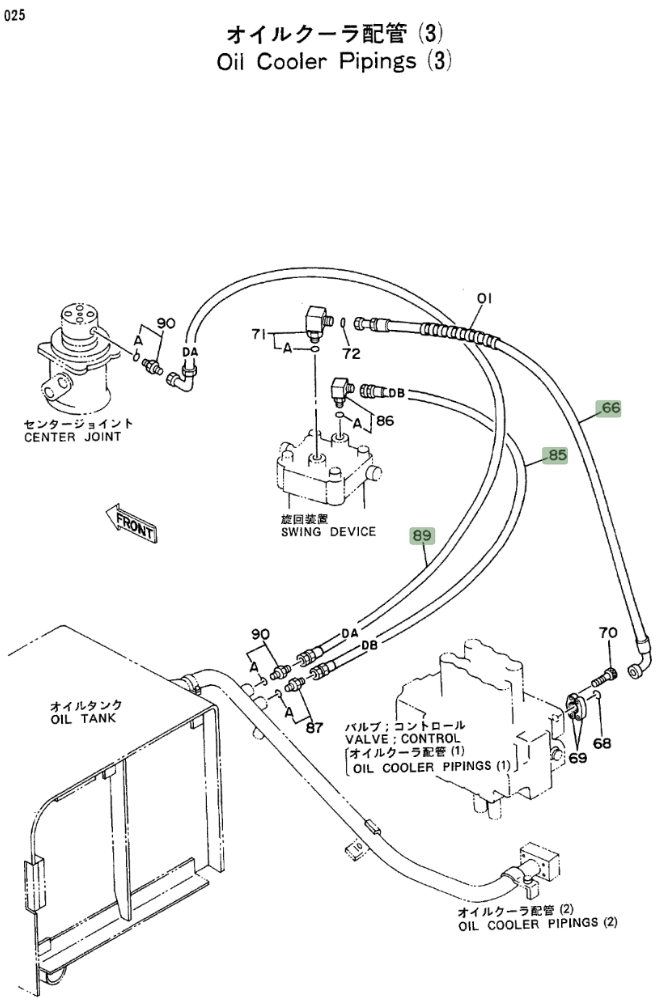

Installation diagram — Pipe No. 89

Locate Pipe No. 89 in the diagram, then confirm part number 4207949 before removing the hose.

Hitachi EX300LC installation diagram showing hydraulic hose 4207949 at Pipe No. 89 — Hitachi EX300LCPart 4207949 · Pipe No. 89Open full-size diagram

Repair specifications

Part number: 4207949
Diagram pipe number: 89
Installation route: 回转接头~回油铁管(液压油箱)
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 1,730 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1
