Individual hose record

4472646 Hose Repair Specifications

Excavator · Hitachi · ZX200LC · Hydraulic Pump

Finished length1,000 mm

Locate this hose

Installation diagram — Pipe No. 0

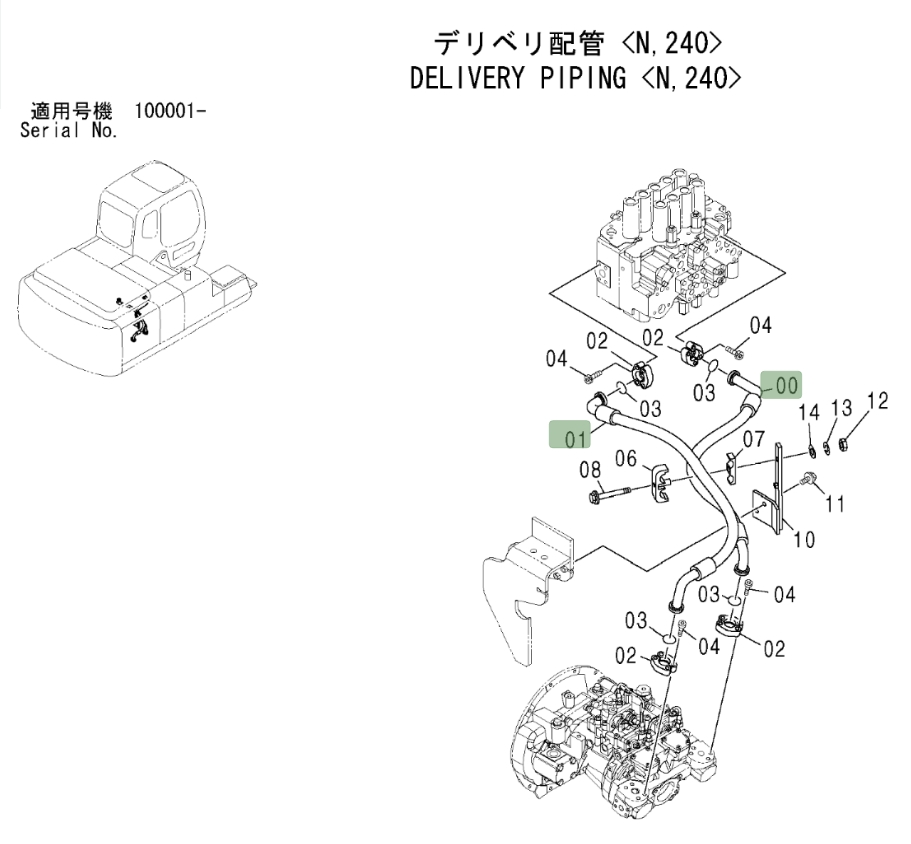

Locate Pipe No. 0 in the diagram, then confirm part number 4472646 before removing the hose.

Hitachi ZX200LC installation diagram showing hydraulic hose 4472646 at Pipe No. 0 — Hitachi ZX200LCPart 4472646 · Pipe No. 0Open full-size diagram

Repair specifications

Part number: 4472646
Diagram pipe number: 0
Installation route: 液压泵~分配阀(进油)
Hose specification: DN22;4SP-14;35Mpa
Finished length: 1,000 mm
Working pressure: 35 MPa
Left fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
Right fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 1

4472642

Installation route: 液压泵~分配阀(进油)

Length: 1,250 mm
Specification: DN22;4SP-14;35Mpa
Left fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
Right fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型

View full repair specifications

Diagram Pipe No. 9

4442133

Installation route: 液压泵~堵头(减震管)

Length: 600 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
