730502005801 Hose Repair Specifications

Excavator · Sunward · SWE365F · Solenoid Valve

Finished length630 mm

Locate this hose

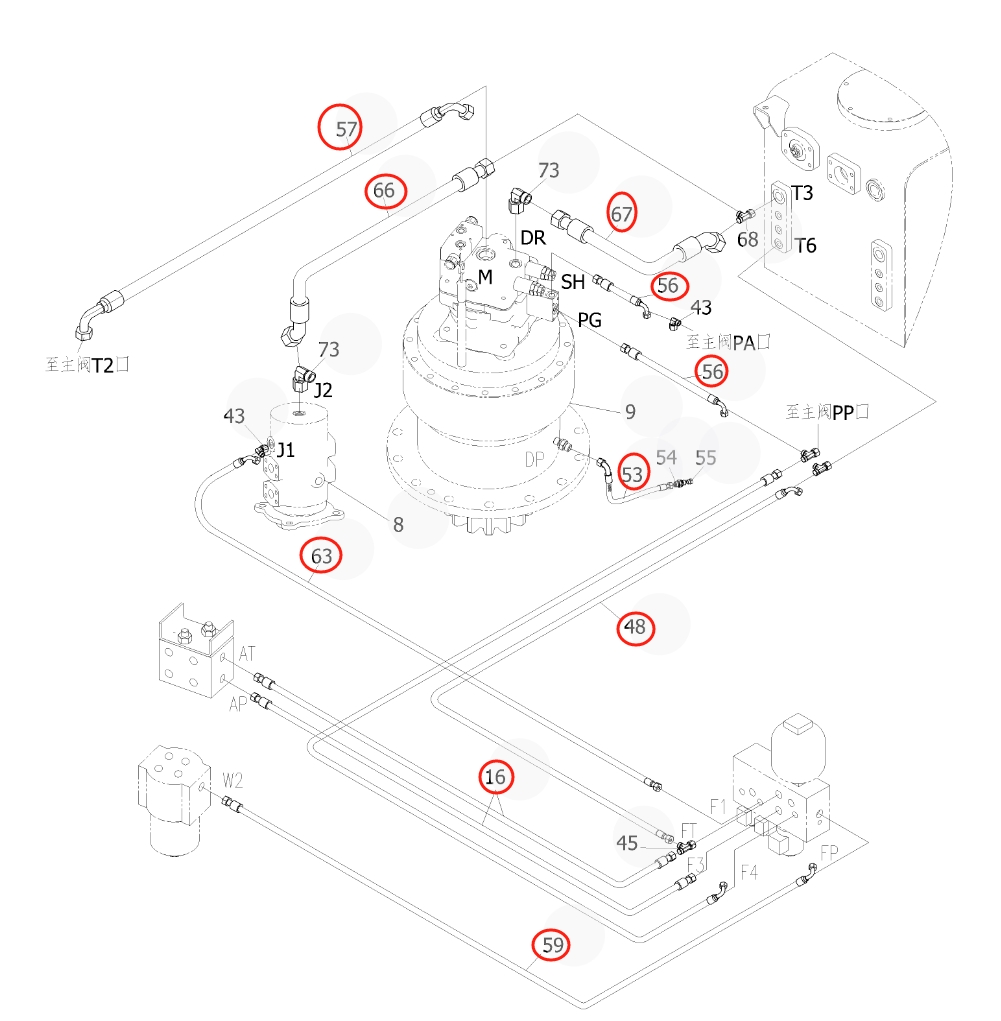

Installation diagram — Pipe No. 59

Locate Pipe No. 59 in the diagram, then confirm part number 730502005801 before removing the hose.

Sunward SWE365F installation diagram showing hydraulic hose 730502005801 at Pipe No. 59 — Sunward SWE365FPart 730502005801 · Pipe No. 59Open full-size diagram

Repair specifications

Part number: 730502005801
Diagram pipe number: 59
Installation route: 电磁阀(蓄能器)~液压油滤清器
Hose specification: DN10;1SN-06;20.7MPa
Finished length: 630 mm
Working pressure: 20.7 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1
