4628532 Hose Repair Specifications

Excavator · Hitachi · ZX120-3 · Boom Assembly

Finished length950 mm

Locate this hose

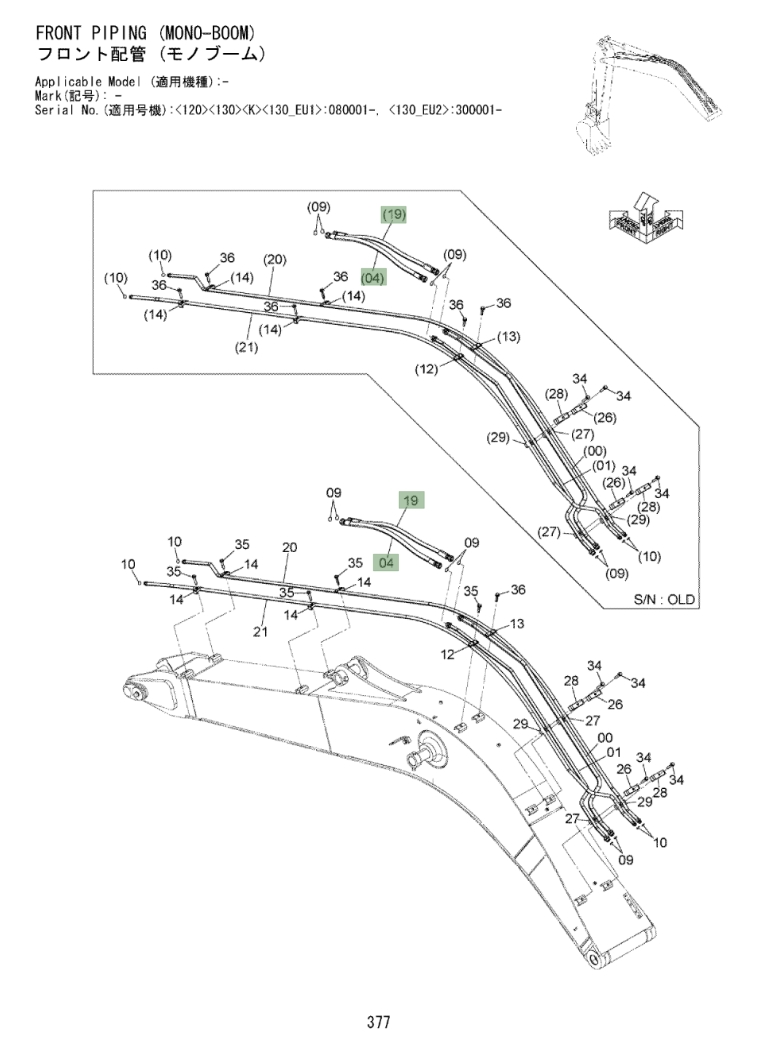

Installation diagram — Pipe No. 19

Locate Pipe No. 19 in the diagram, then confirm part number 4628532 before removing the hose.

Part number: 4628532
Diagram pipe number: 19
Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右
Hose specification: DN19;4SH-12;42MPa
Finished length: 950 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 4

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 955 mm
Specification: DN16;4SP-10;38Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
