Individual hose record
4627096 Hose Repair Specifications
Excavator · Hitachi · ZX210W · Engine Oil Lines
Finished length1,200 mm
Locate this hose

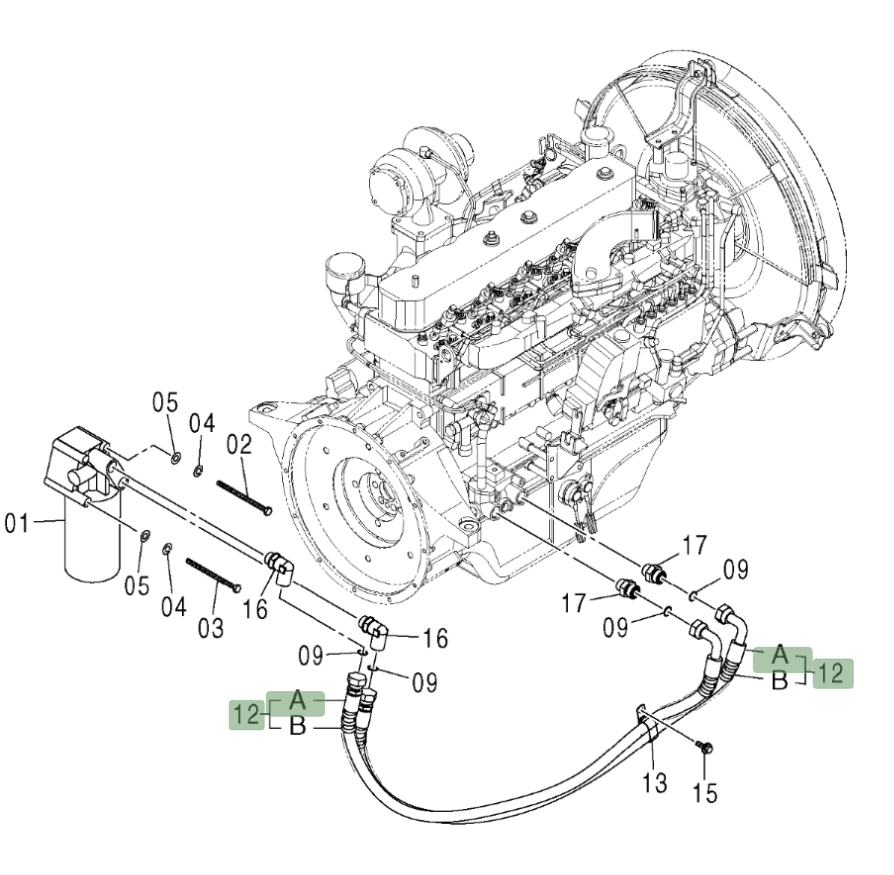

Installation diagram — Pipe No. 12A
Locate Pipe No. 12A in the diagram, then confirm part number 4627096 before removing the hose.
Repair specifications
- Part number
- 4627096
- Diagram pipe number
- 12A
- Installation route
- 机油管
- Hose specification
- DN16;1SN-10;13Mpa
- Finished length
- 1,200 mm
- Working pressure
- 13 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 2
