Individual hose record

4698541 Hose Repair Specifications

Excavator · Hitachi · ZX870LC-5A · Pedal

Finished length5,200 mm

Locate this hose

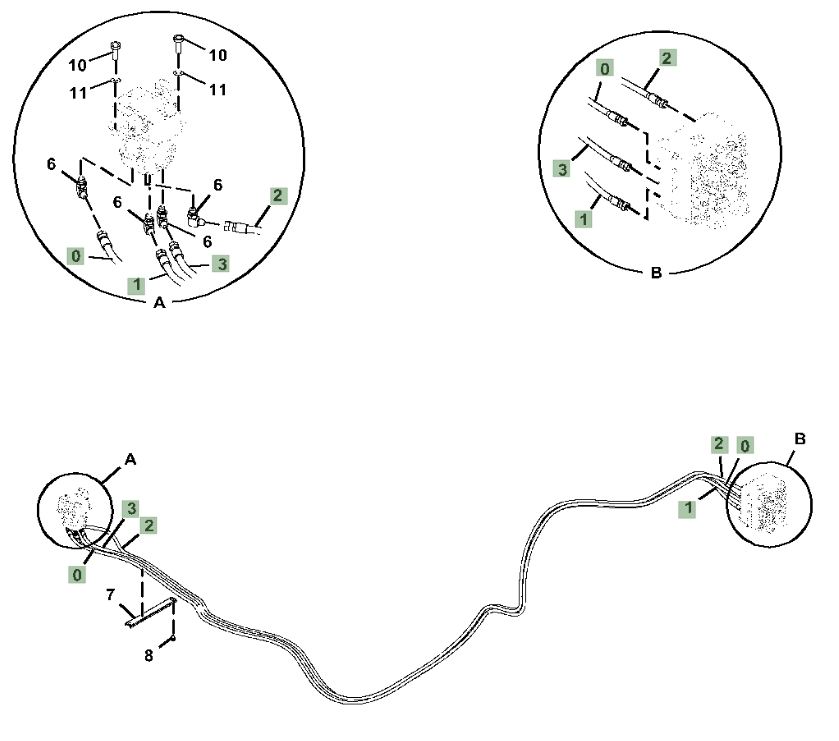

Installation diagram — Pipe No. 0

Locate Pipe No. 0 in the diagram, then confirm part number 4698541 before removing the hose.

Hitachi ZX870LC-5A installation diagram showing hydraulic hose 4698541 at Pipe No. 0 — Hitachi ZX870LC-5APart 4698541 · Pipe No. 0Open full-size diagram

Repair specifications

Part number: 4698541
Diagram pipe number: 0
Installation route: 行走踏板~中转接头
Hose specification: DN10;1SN-6;7Mpa
Finished length: 5,200 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 8

4648087

Installation route: 行走踏板~进回油阀

Length: 430 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 9

4709482

Installation route: 行走踏板~进回油阀

Length: 600 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 3

4711869

Installation route: 行走踏板~中转接头

Length: 5,200 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 1

4706572

Installation route: 行走踏板~中转接头

Length: 5,100 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 2

4711867

Installation route: 行走踏板~中转接头

Length: 5,300 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
