Individual hose record
4634380 Hose Repair Specifications
Excavator · Hitachi · ZX230W-5N · Hydraulic Tank
Finished length1,400 mm
Locate this hose

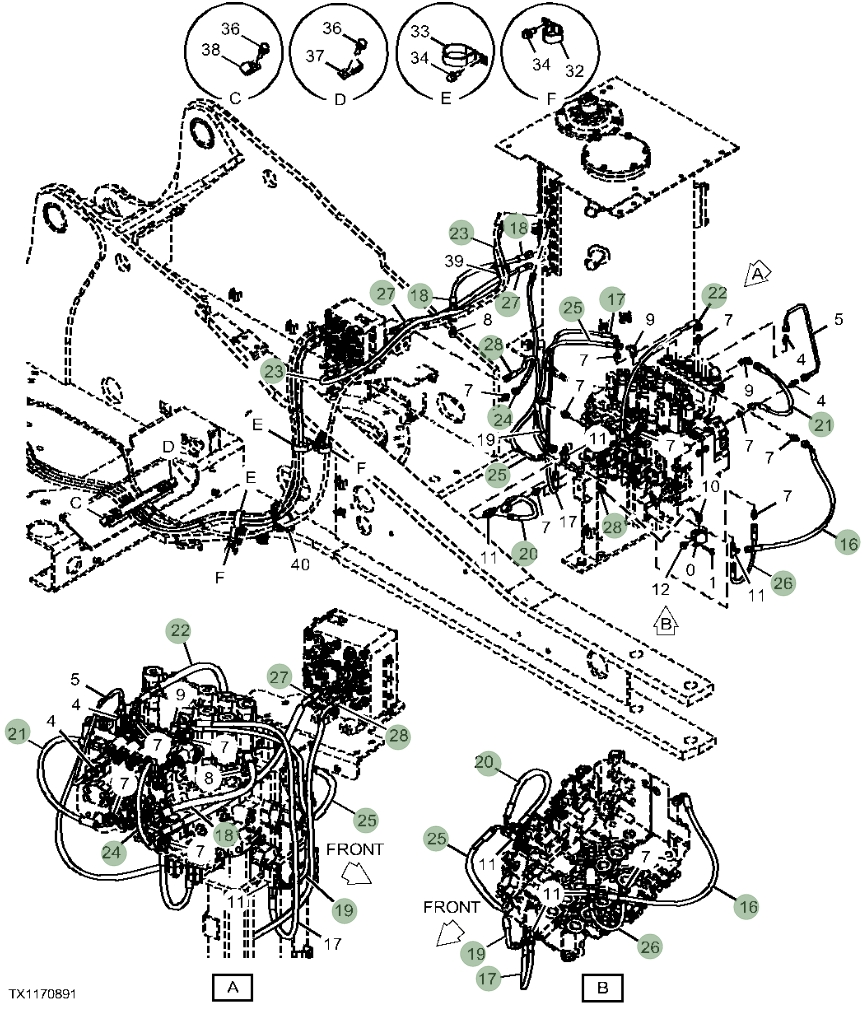

Installation diagram — Pipe No. 23
Locate Pipe No. 23 in the diagram, then confirm part number 4634380 before removing the hose.
Repair specifications
- Part number
- 4634380
- Diagram pipe number
- 23
- Installation route
- 液压油箱~中转接头
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,400 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
