Individual hose record
4281754 Hose Repair Specifications
Excavator · Hitachi · ZX350LC-5A · Attachments
Finished length1,750 mm
Locate this hose

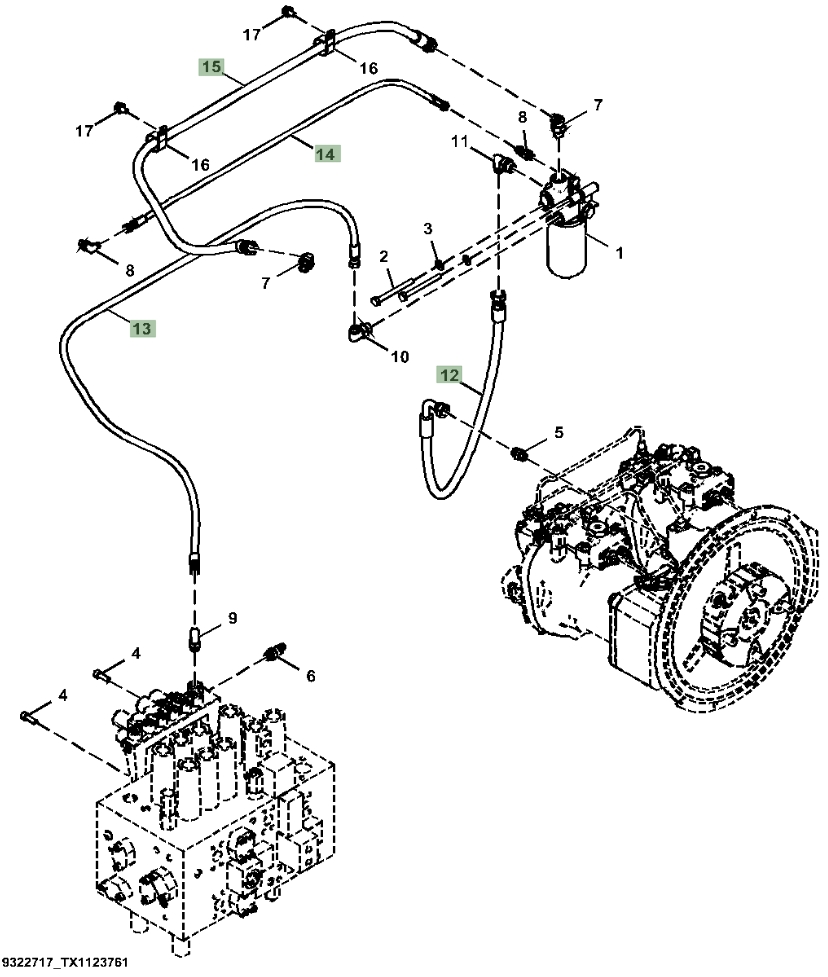

Installation diagram — Pipe No. 15
Locate Pipe No. 15 in the diagram, then confirm part number 4281754 before removing the hose.
Repair specifications
- Part number
- 4281754
- Diagram pipe number
- 15
- Installation route
- 回油铁管(液压油箱)~先导滤芯
- Hose specification
- DN13;1SN-08;16MPa
- Finished length
- 1,750 mm
- Working pressure
- 16 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
