Individual hose record
KRV2405 Hose Repair Specifications
Excavator · Case · CX135SR · Boom Assembly
Finished length1,000 mm
Locate this hose

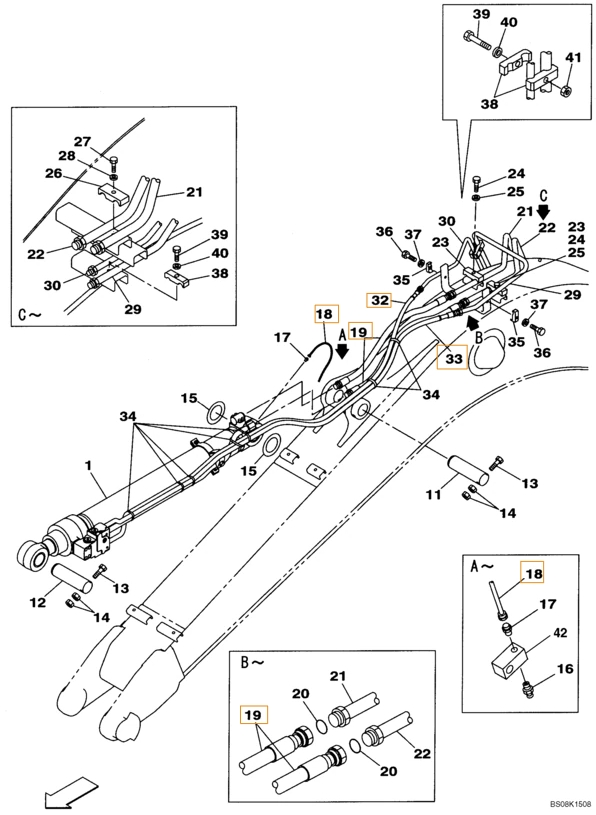

Installation diagram — Pipe No. 19
Locate Pipe No. 19 in the diagram, then confirm part number KRV2405 before removing the hose.
Repair specifications
- Part number
- KRV2405
- Diagram pipe number
- 19
- Installation route
- 小臂油缸
- Hose specification
- DN19;4SP-12;35MPa
- Finished length
- 1,000 mm
- Working pressure
- 35 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 英制外螺纹平面密封
- Quantity
- 2
