Individual hose record

152767A1 Hose Repair Specifications

Excavator · Case · CX350B · Control Lever

Finished length2,350 mm

Locate this hose

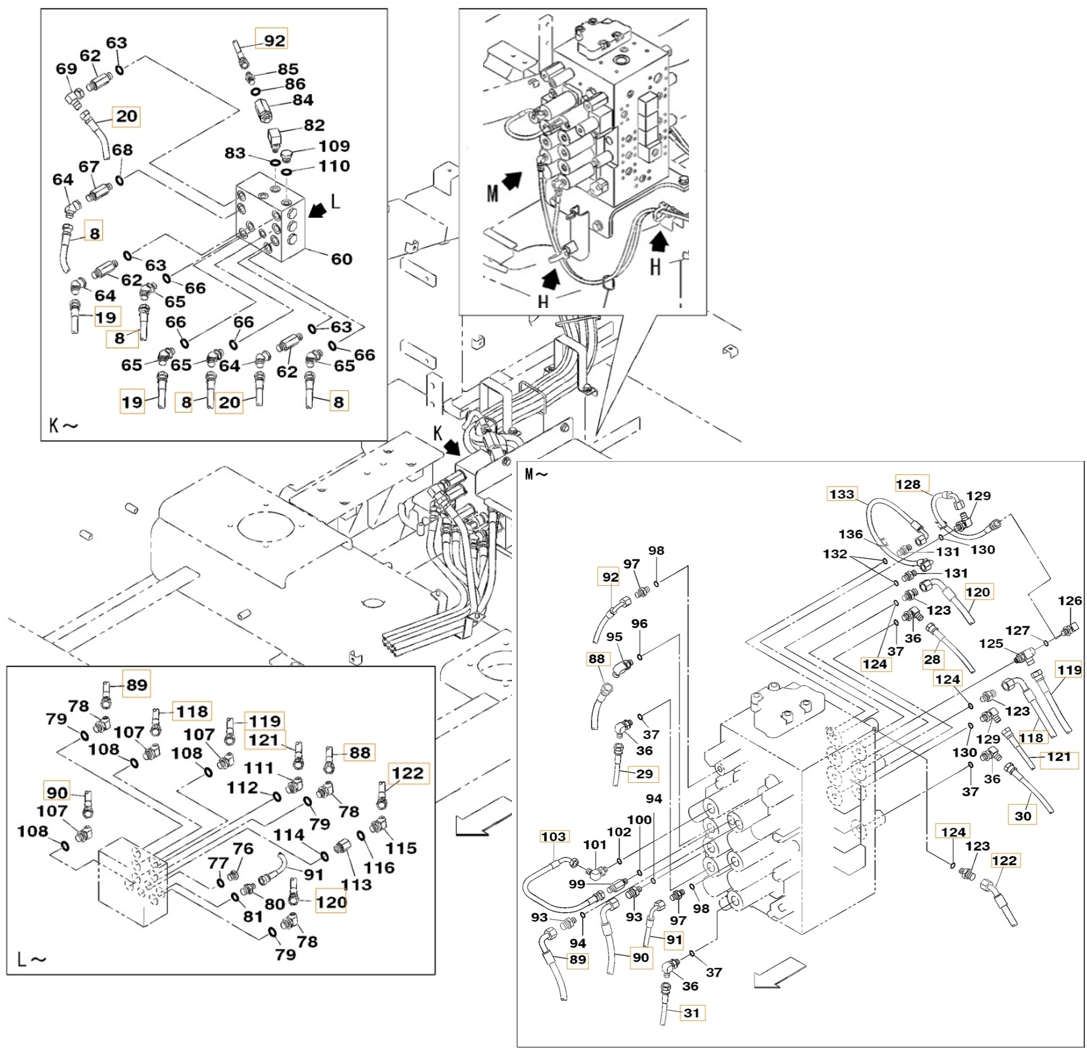

Installation diagram — Pipe No. 88

Locate Pipe No. 88 in the diagram, then confirm part number 152767A1 before removing the hose.

Case CX350B installation diagram showing hydraulic hose 152767A1 at Pipe No. 88 — **Case CX350B**Part 152767A1 · Pipe No. 88Open full-size diagram

Repair specifications

Part number: 152767A1
Diagram pipe number: 88
Installation route: 中转接头~分配阀前右
Hose specification: DN10;1SN-06;18MPa
Finished length: 2,350 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 19

159217A1

Installation route: 左手柄~模式转换阀

Length: 1,850 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 20

KRJ4381

Installation route: 左手柄~中转接头

Length: 1,800 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 19

159217A1

Installation route: 左手柄~中转接头

Length: 1,850 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 9

159213A1

Installation route: 右手柄~进回油阀

Length: 1,150 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 121

163258A1

Installation route: 中转接头~分配阀后左

Length: 1,750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 8

159211A1

Installation route: 右手柄~模式转换阀

Length: 2,000 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 89

159362A1

Installation route: 中转接头~分配阀前左

Length: 2,300 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 8

159211A1

Installation route: 右手柄~中转接头

Length: 2,000 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications
