Individual hose record

4250056 Hose Repair Specifications

Excavator · Hitachi · EX100-3 · Boom Assembly

Finished length1,100 mm

Locate this hose

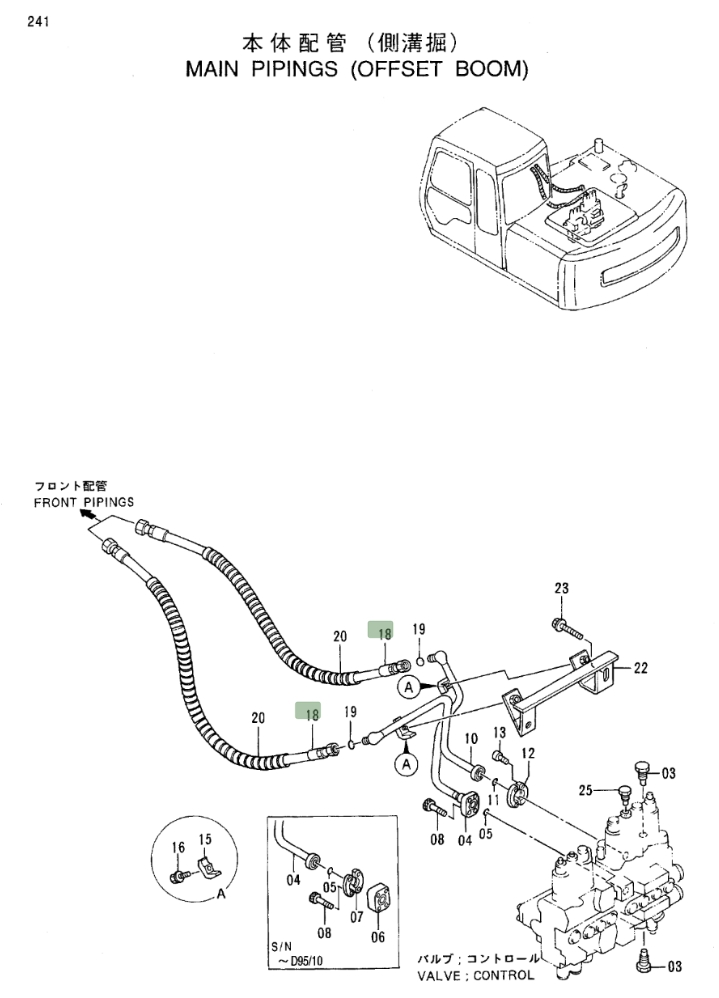

Installation diagram — Pipe No. 18

Locate Pipe No. 18 in the diagram, then confirm part number 4250056 before removing the hose.

Hitachi EX100-3 installation diagram showing hydraulic hose 4250056 at Pipe No. 18 — **Hitachi EX100-3**Part 4250056 · Pipe No. 18Open full-size diagram

Repair specifications

Part number: 4250056
Diagram pipe number: 18
Installation route: 大臂左2/左3
Hose specification: DN12;4SP-08;34.5Mpa
Finished length: 1,100 mm
Working pressure: 34.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 12

4265833

Installation route: 小臂油缸前

Length: 1,300 mm
Specification: DN19;4SP-12;31Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 59A

4271813

Installation route: 大臂左2(小臂油缸)

Length: 1,300 mm
Specification: DN16;4SP-10;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 16

4250056

Installation route: 铲斗油缸(前段)

Length: 1,100 mm
Specification: DN12;4SP-08;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 17

4285464

Installation route: 大臂油缸左1/左4

Length: 710 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 12

4265833

Installation route: 大臂(前段)~大臂(后段)

Length: 1,300 mm
Specification: DN19;4SP-12;31Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 12

4260311

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 700 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 13

4260310

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 700 mm
Specification: DN16;4SP-10;38Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 13

4260263

Installation route: 大臂(前段)~大臂(后段)

Length: 1,300 mm
Specification: DN12;4SP-8;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications
