Individual hose record
4635267 Hose Repair Specifications
Excavator · Hitachi · ZX200LC-3 · Attachments
Finished length600 mm
Locate this hose

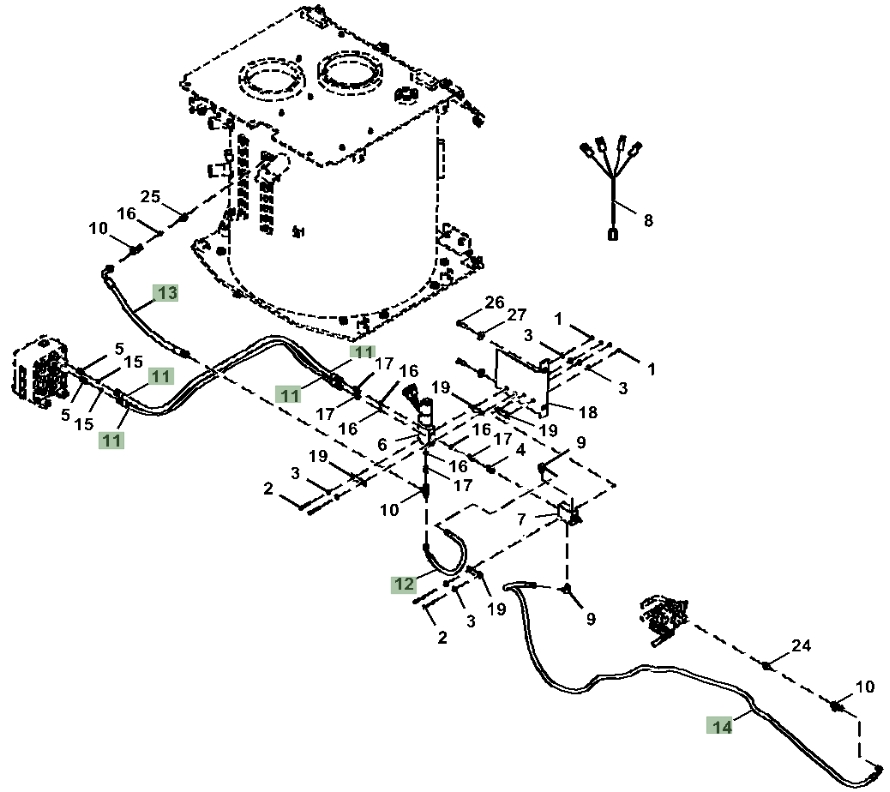

Installation diagram — Pipe No. 12
Locate Pipe No. 12 in the diagram, then confirm part number 4635267 before removing the hose.
Repair specifications
- Part number
- 4635267
- Diagram pipe number
- 12
- Installation route
- 电磁阀~液压压力阀
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 600 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
