Individual hose record

4392192 Hose Repair Specifications

Excavator · Hitachi · ZX120 · Attachments – Quick Coupler

Finished length1,500 mm

Locate this hose

Installation diagram — Pipe No. 48

Locate Pipe No. 48 in the diagram, then confirm part number 4392192 before removing the hose.

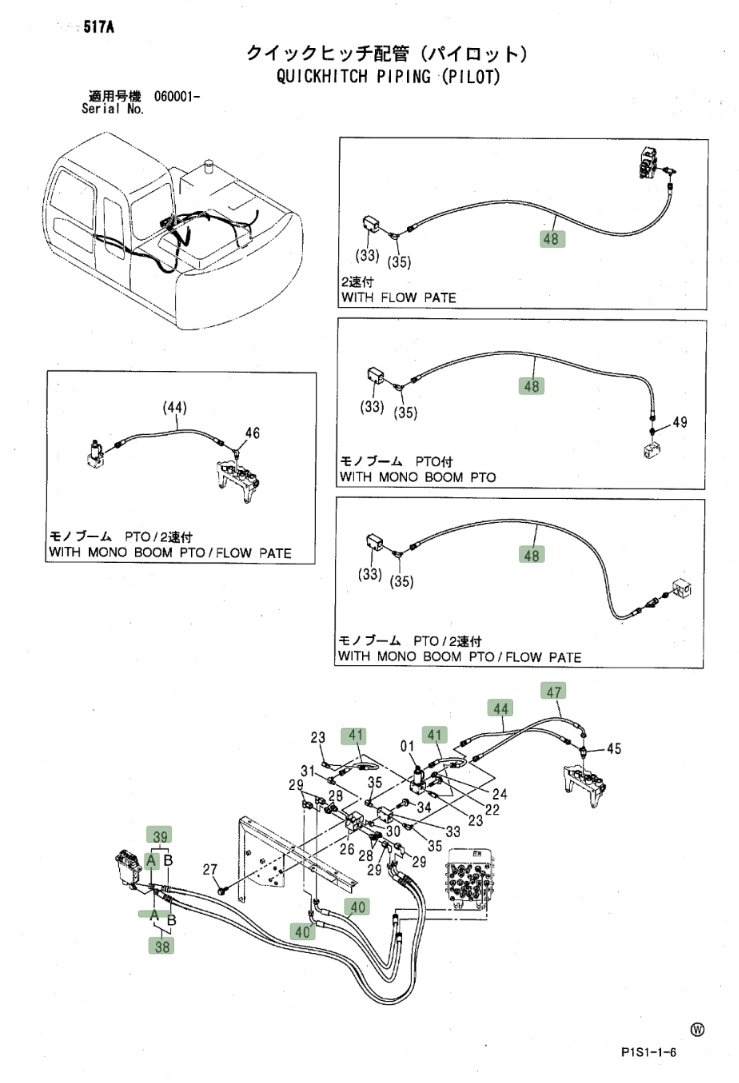

Hitachi ZX120 installation diagram showing hydraulic hose 4392192 at Pipe No. 48 — Hitachi ZX120Part 4392192 · Pipe No. 48Open full-size diagram

Repair specifications

Part number: 4392192
Diagram pipe number: 48
Installation route: 流速切换阀~过渡阀块(快换)
Hose specification: DN6;1SN-4;7Mpa
Finished length: 1,500 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 44

4436352

Installation route: 电磁阀~电磁阀(快换)

Length: 600 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 8

4601514

Installation route: 大臂(快换)~小臂(快换)

Length: 1,900 mm
Specification: DN10;2SN-06;34.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 41

4452733

Installation route: 中转接头~过渡阀块(快换)

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 41

4452733

Installation route: 电磁阀(快换)~过渡阀块(快换)

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
