4373561 Hose Repair Specifications

Excavator · Hitachi · EX750-5 · Control Valve

Finished length1,300 mm

Locate this hose

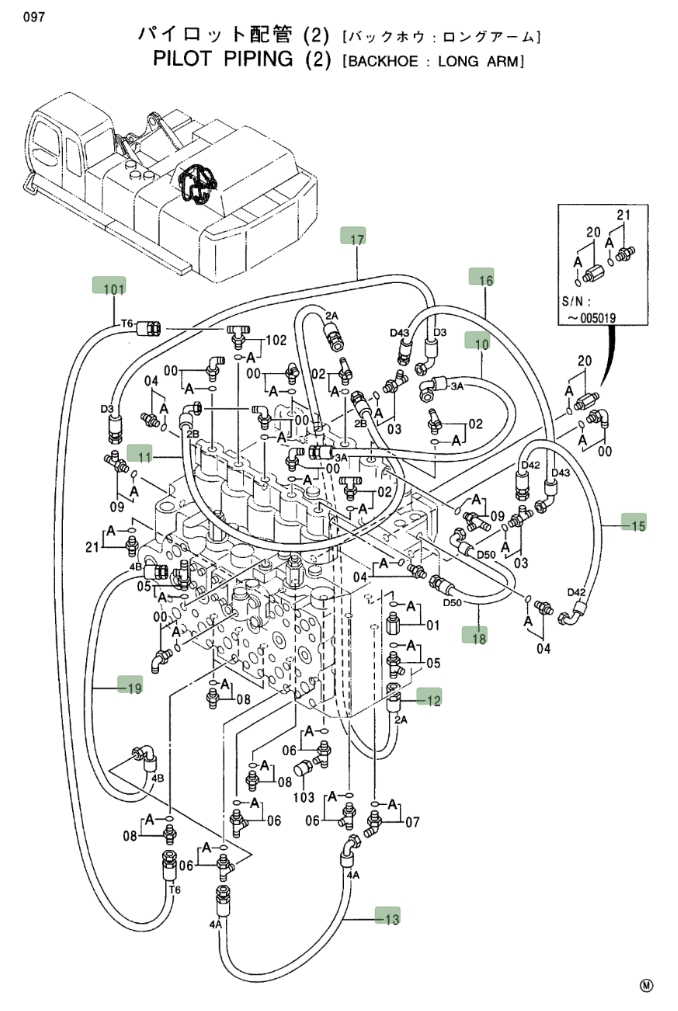

Installation diagram — Pipe No. 101

Locate Pipe No. 101 in the diagram, then confirm part number 4373561 before removing the hose.

Hitachi EX750-5 installation diagram showing hydraulic hose 4373561 at Pipe No. 101 — Hitachi EX750-5Part 4373561 · Pipe No. 101Open full-size diagram

Repair specifications

Part number: 4373561
Diagram pipe number: 101
Installation route: 分配阀上左~分配阀下
Hose specification: DN10;1SN-6;7Mpa
Finished length: 1,300 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 14

4375845

Installation route: 分配阀下~接线板(遮蔽板下)

Length: 1,100 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 127

4393811

Installation route: 分配阀下~接线板(遮蔽板下)

Length: 1,800 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 27

4375850

Installation route: 分配阀上~接线板(遮蔽板)

Length: 1,250 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 16

4375852

Installation route: 分配阀下~接线板(遮蔽板下)

Length: 1,350 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 123

4367002

Installation route: 分配阀前~过渡阀块(装载)

Length: 2,000 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 133

4368707

Installation route: 分配阀下~接线板(遮蔽板下)

Length: 1,900 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 61

4375851

Installation route: 分配阀下~接线板(遮蔽板)

Length: 1,250 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 117

4366742

Installation route: 分配阀右~控制阀(装载)

Length: 1,050 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
